LH075J Counter-Balanced shop crane

i-Lift Counter balanced electric workshop crane is designed for transporting, lifting with unique operate handle, brake, and foldable design.

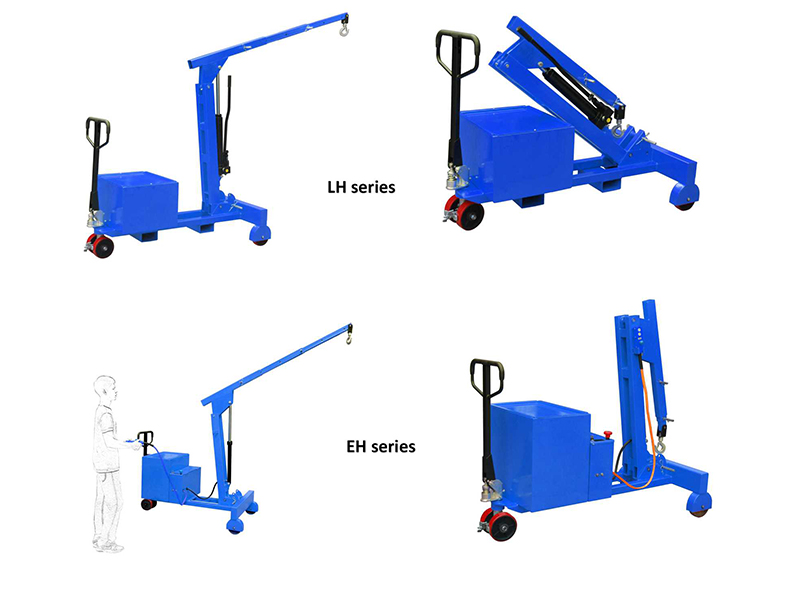

LH055J & LH075J are counter-balanced manual workshop crane with double action hydraulic pump, EH055J & EH075J are counter-balanced electric workshop crane with electric lifting. counter-balanced design allows to work close to a machine. Tested 25% overload before delivery.

The manual counter-balanced shop crane has models LH055J, LH075J, and the electric counter-balanced shop crane has models EH055J, EH075J for you choice.



We have this item in stock in France/US, if you are located in Europe or US, we can arrange delivery to you ASAP! This way will save your time and shipping cost.

i-Lift No.2342101234210223421032342104
ModelLH055JLH075JEH055JEH075J
Capacity kg(lb.)550(1210)750(1650)550(1210)750(1650)
Max load at jib length 925 kg(lb.)550(1210)750(1650)550(1210)750(1650)
Max load at jib length 1210 kg(lb.)450(990)500(1100)450(990)500(1100)
Max load at jib length 1500 kg(lb.)350(770)380(836)350(770)380(836)
Max load at jib length 1800 kg(lb.)250(550)260(572)250(550)260(572)
Max load at jib length 2080 kg(lb.)150(330)200(440)150(330)200(440)
Hydraulic pumpDouble actingElectric
wheel mm(in.)Steel+PU Dia180(7")

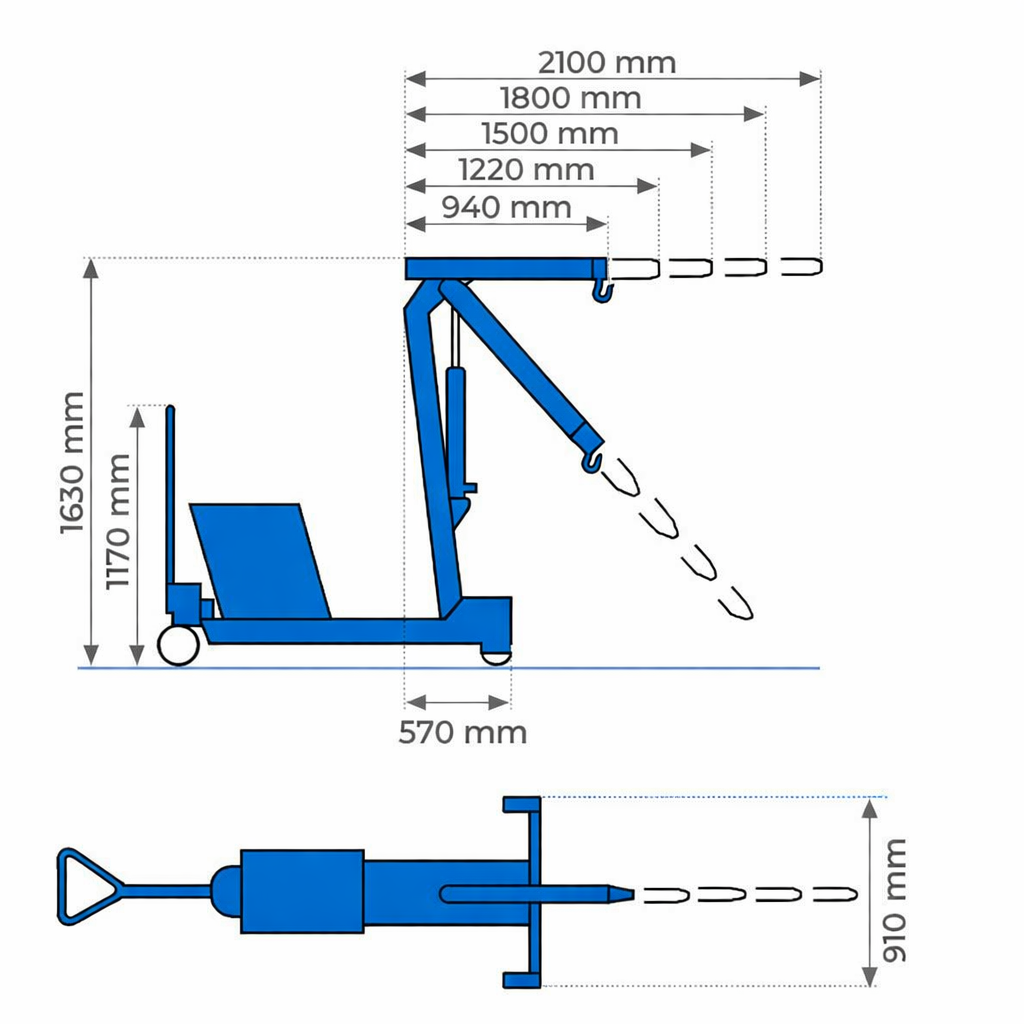

Max crane arm length mm(in.)2080(81.9)
Min crane arm length mm(in.)930(36.6)
Lifting height max cantilever arm extended mm(in.)2750(108.3)
Overall size（L*W*H) mm(in.)2400*910*1630(94.5*35.8*64.2)
Packing size（L*W*H)2pcs mm(in.)2400*1900*1700(94.5*74.8*66.9)
BatteryV/Ah------12/6012/80
ChargerV/A------12/8
Weight(without counterweight & box) kg(lb.)180(396)215(473)220(484)
weight of counterweight box kg(lb.)210+30(462+66)280+40(616+88)210+30(462+66)280+40(616+88)
Total weight(with counterweight & box) kg(lb.)420(924)500(1100)455(1000)540(1188)

Additional Function of foldable electric workshop crane (Value –added for our customer)

The counter balance unit consists of 2 separate counterbalanced blocks, each weight 23Kg(LH05J) and 35kg(LH075J), Taking away the separated block will obtain the new capacity (120% overload testing before delivery)，pls. Refer to the capacity table below strictly, and never overload use.

The model allows lifting and handling loads up to 500 kg. It is equipped with an extremely light double-acting hand pump which allows fast lifting. A handwheel for the descent of the arm positioned near the pump allows the regulation of the descent speed, the arm is extensible to 4 different positions.

The model does not require any certification or authorization for the user. An extension accessory is available to increase the overhang up to a maximum length of 1285 mm.

LH055J

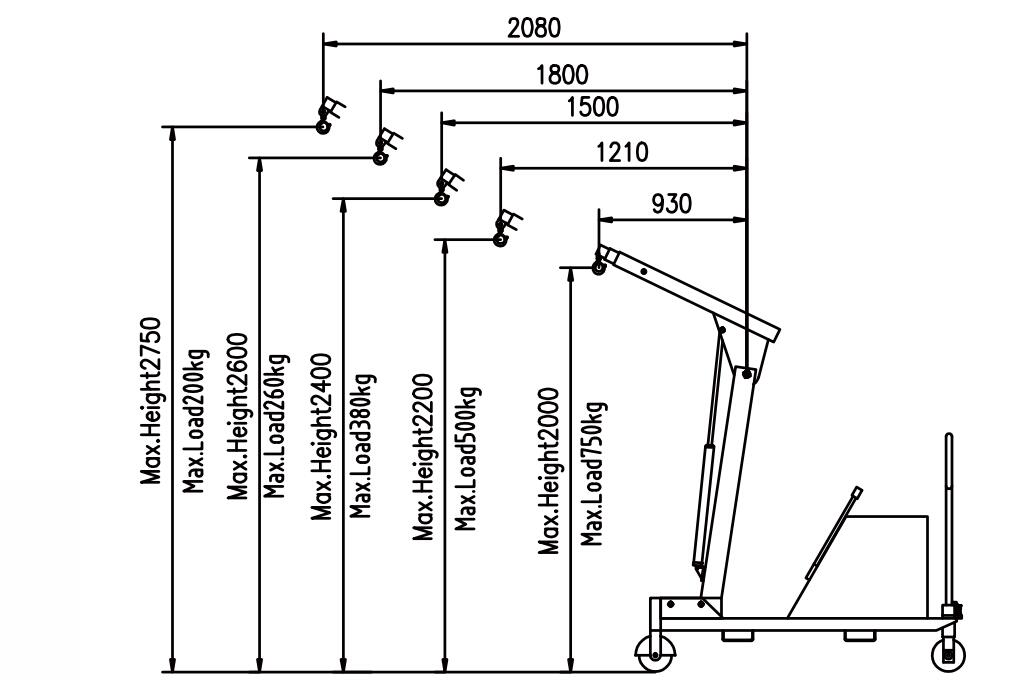

Lifting Arm Length (L)  (mm)9251210150018002080
              Max. Capacity (Kg)                         with two separate counterbalanced blocks                      (Standard)550450350250150
            Max. Capacity (Kg)                           with one separate counterbalanced block420350270190110
           Max. Capacity (Kg)                               without separate counterbalanced block30025019013060

LH075J

Lifting Arm Length (L)  (mm)9251210150018002080
          Max. Capacity (Kg)                             with two separate counterbalanced blocks                  (Standard)750500380250200
            Max. Capacity (Kg)                            with one separate counterbalanced block550450350250150
               Max. Capacity (Kg)                            without separate counterbalanced block420350270190110

CAUTION:

1) Never Overload use the shop crane

2) Change the capacity labels on the shop crane immediately after taking away the adjusting counterbalanced block.

Electric workshop crane (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hours operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.
