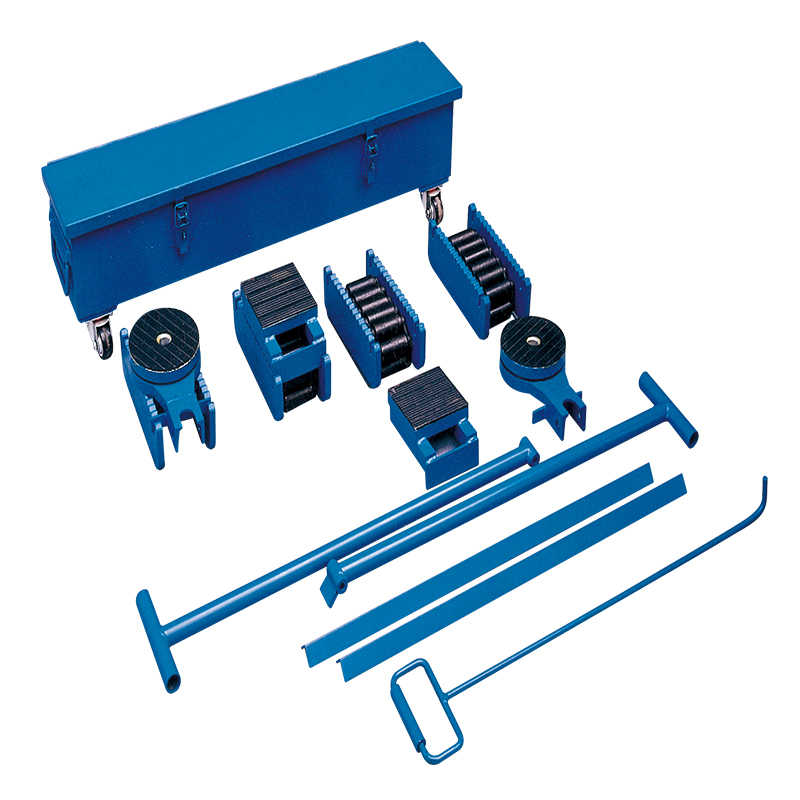

Complete skate kits includes four roller skates, two turntables, two packing plates, two steering handles, two link-up bars, one draw bar and one metal box. This unit is mainly used for short, variable transportation distances. For installation works and movement of heavy loads. The steering handle gives you precise control making it easy to maneuver large machinery or into tight areas. Its moving speed not exceed 5m/min. and minimum turning radius is 3m.
The skates have model SK20 (20ton), SK30 (30ton), SK60 (60ton).
| i-lift No. | 1910801 | 1910802 | 1910803 | |
| Model | SK20 | SK30 | SK60 | |
| Capacity | kg(lb.) | 20000(44000) | 30000(66000) | 60000(132000) |
| Length support | mm(in.) | 120(4.7) | 120(4.7) | 130(5.1) |
| Width support | mm(in.) | 120(4.7) | 120(4.7) | 130(5.1) |
| Total height | mm(in.) | 108(4.3) | 117(4.6) | 140(5.5) |
| Rollers Dia. | mm(in.) | 18(0.7) | 24(1) | 30(1.2) |
| Swivel Top | mm(in.) | 130(5.1) | 130(5.1) | 150(6) |
| Weight of set | kg(lb.) | 50(110) | 58(128) | 92(202) |
Types of skates:
As a professional stacker manufacturer for many years, we have developed various kinds of skates, such as Skates fixed type, skates with caster, rotating roller machine skates, steerable skates, adjustable skates, steerable skates, complete skate kits, turn table, packing plate, roller skates, etc…
After-sale service:
- Each equipment comes with specs instruction
- 1 Year Limited Warranty
- We have been in manufacturing skates for many years. And we have a professional and perfect after-sales service team.
Skate manufacturer:
As a professional manufacturer of various types of material handling & lifting products, Complete skate kits is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase a type of skates, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
