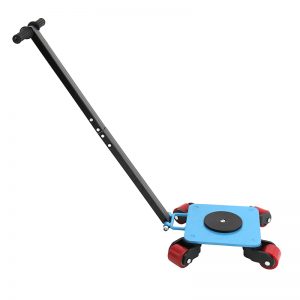

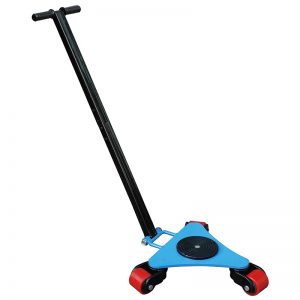

iWCRP-2 Heavy-duty Rotating Machine Roller Skates

What is Rotating Roller Machine Skates?

i-Lift rotating heavy duty machine moving skates are designed for relocating, positioning and installing heavy machinery in factories, workshops, warehouses and industrial facilities. With individual load capacities from 2.2 to 12 tonnes (4,400 to 26,400 lb), the iWCRP series provides a compact, low-profile solution for moving heavy equipment where forklifts or other large handling equipment may have limited access.

Unlike fixed-direction machinery skates, these rotating heavy duty skates for moving equipment use 360° rotating roller assemblies to provide greater maneuverability when changing direction or precisely positioning a machine.

They can be used for moving CNC machines, machine tools, production equipment, generators, industrial cabinets and other heavy machinery over suitable smooth, level industrial floors.

Note: When combining multiple rotational skates on a single load, the Total Load Capacity is the combined cpacity of each skate.

iWCRP-2 IWCRP-3 IWCRP-4

How to Choose the Right Heavy Equipment Roller Skates

Selecting the right heavy equipment roller skates starts with the total weight, dimensions and weight distribution of the machine being moved.

The iWCRP series is available in several capacities:

i-lift No.		1913101	1913103	1913102	1913104	1913105	1913106	1913107

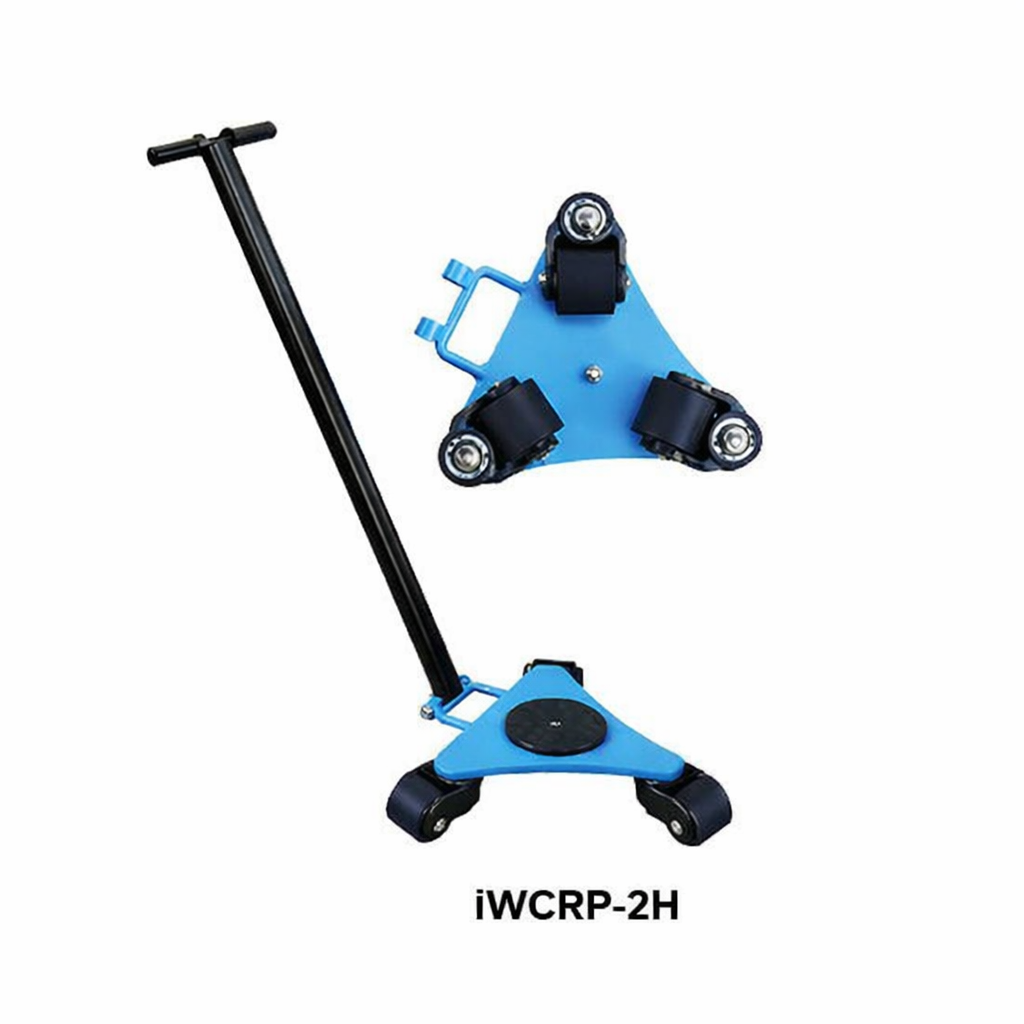

Model		iWCRP-2	iWCRP-3	iWCRP-4	iWCRP-2H	iWCRP-4H	iWCRP-8	iWCRP-12
Load Capacity	kg(lb.)	2200(4400)	3000(6600)	4000(8800)	3000(6600)	5000(11000)	8000(17600)	12000(26400)
No. Of Rollers		3	4	5	3	5	5	5
PU Roller	mm(in.)	Ø8070(32.8)						Ø14085(5.53.3)
Height	mm(in.)	110(4.4)			114(4.5)		124(4.9)	185(7.3)
Width	mm(in.)	500(20)	470(18.5)	585(23)	500(20)	585(23)	562(22.1)	796(31.3)
Depth	mm(in.)	410(16.1)	410(16.1)	510(20.1)	410(16.1)	510(20.1)	652(25.7)	1013(40)
Pad Diameter	mm(in.)	165(6.5)			160(6.3)		250(10)
Shipping weight	kg(lb.)	25(55)	29.6(66)	37(81.4)	24.5(53.9)	39(85.8)	51(112.5)	203(447.6)

For larger machines, multiple skates can be positioned at appropriate support points underneath the equipment. Model selection should consider not only the total machine weight but also the actual load distribution and center of gravity.

Not sure which model you need? Send us the equipment weight, dimensions, number of support points and required moving direction, and our team can recommend a suitable machine skate configuration.

Features of Heavy Equipment Moving Skates

Large Capacity: Heavy machinery moving skates Can Carry Up to 26,400 lbs, Ideal for Carrying Large, Heavy Objects, Heavy Machinery, Large Appliances and Etc

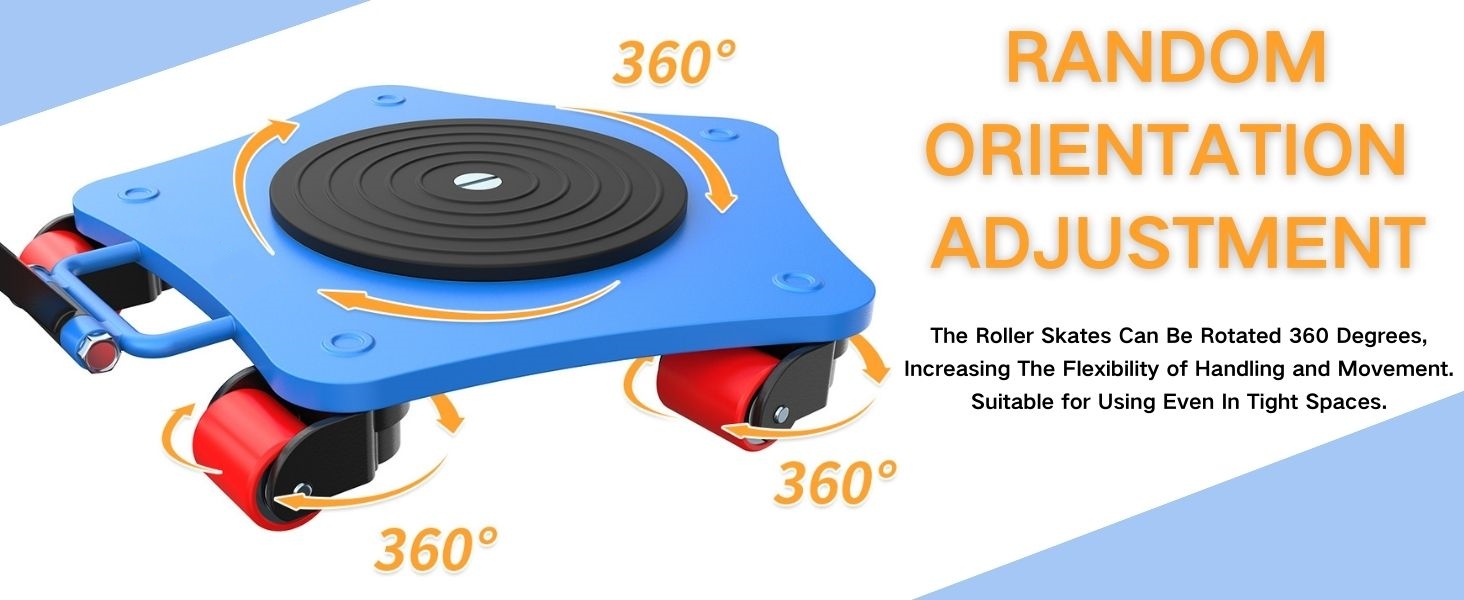

360° Rotation For Flexible Handling: This machinery mover features multi swivel rollers that rotate 360°, allowing precise movement and easy positioning of industrial machines on all smooth surfaces
Scientific Design: Equipped with One-piece Cast Steel Wheel Frame, machinery skates is Anti-deformation, More Sturdy, and The Screws of The Cast Steel Wheel Frame Will Not Scratch

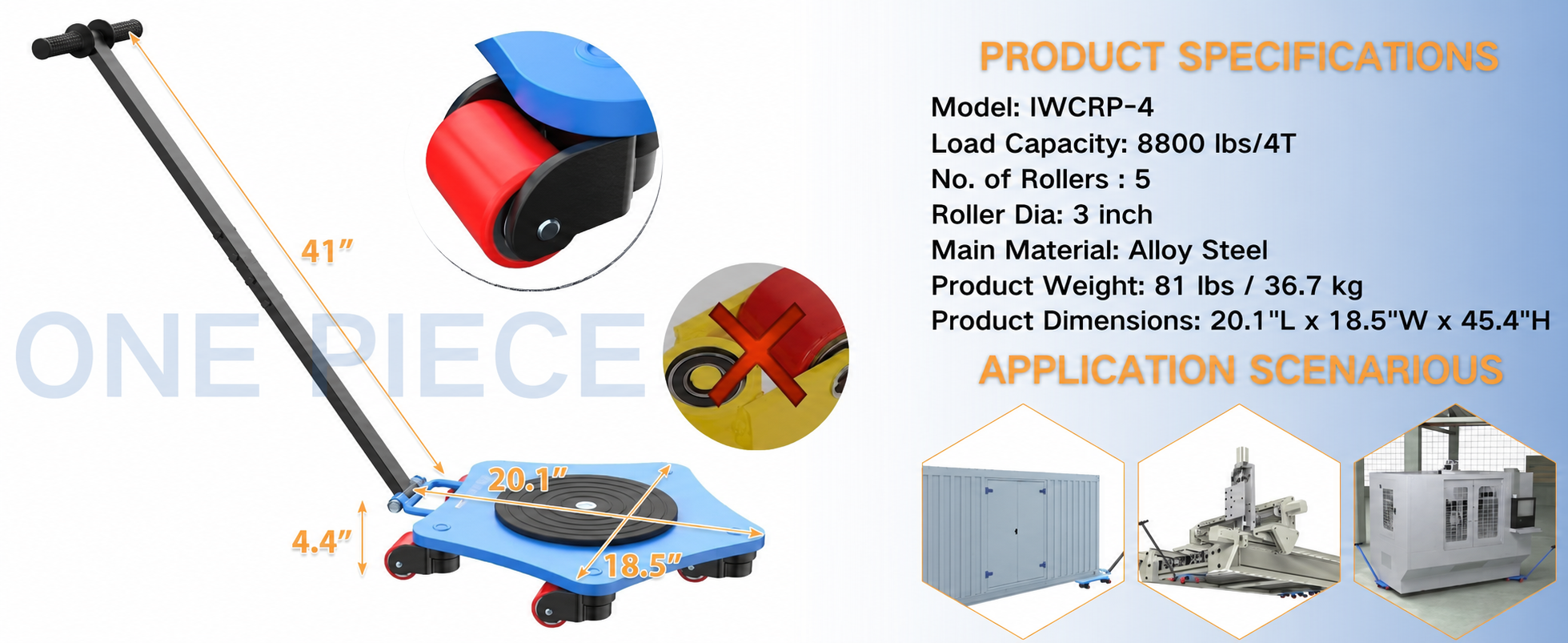

High Quality Material: Amarite Machine Skates Use High Quality Carbon Steel to Prevent Scratching Your Floor, The Texture is Hard, Not Easy To Bend, Not Easy To Deform. 5 PU Rollers, 4.25 inch Board Height and 6.5 inch Pad Diameter

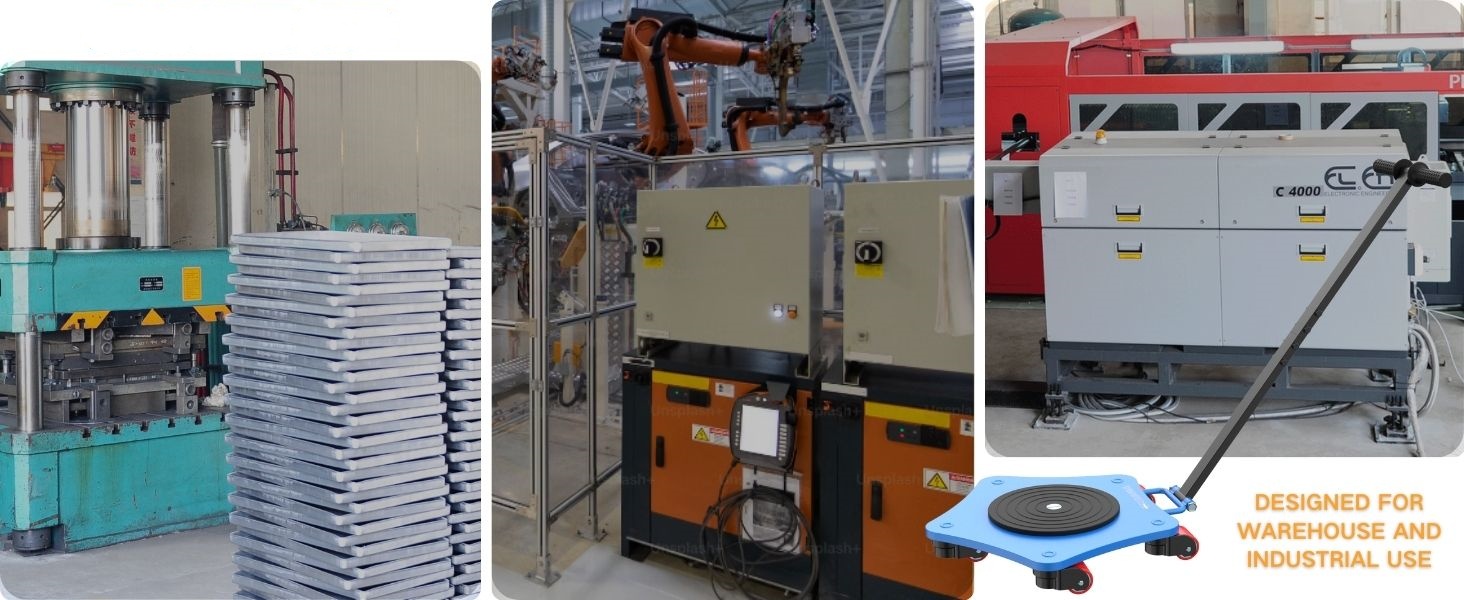

Industrial Use: Move Heavy Machinery or CNC machines With Ease Using The Amarite Machinery Mover Dollies, Ideal Warehouse and Industrial use

Multi-Roller Design for Stable Heavy Load Movement

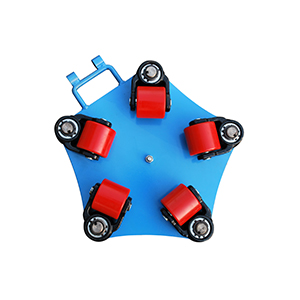

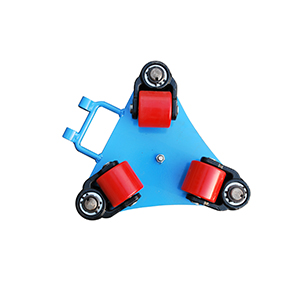

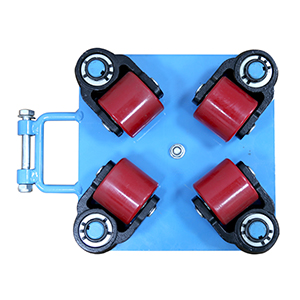

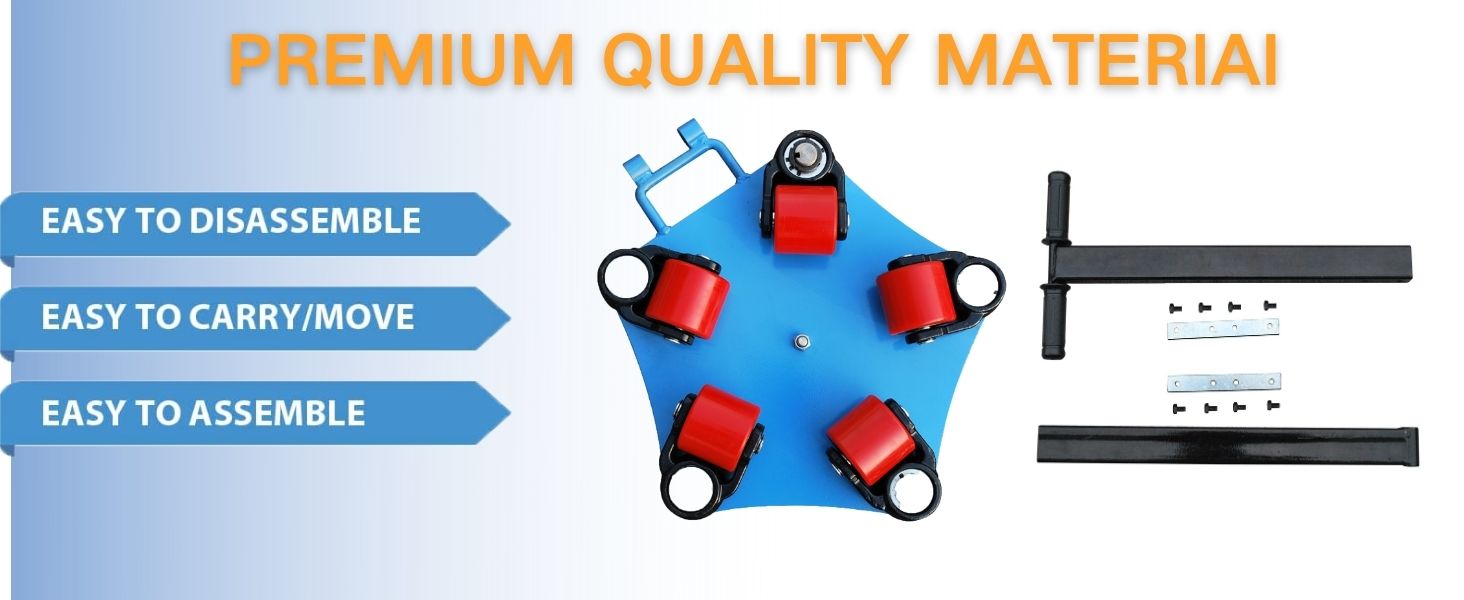

The iWCRP series uses multiple PU rollers beneath each load-bearing platform. Depending on the model, each skate is equipped with 3, 4 or 5 rollers.

This multi-roll machine skate design spreads the supported load across multiple rolling points instead of relying on a single wheel or caster. Combined with the heavy-duty steel frame, the multiple rollers provide stable support while allowing heavy machinery to move smoothly.

The PU rollers are particularly suitable for movement over smooth, hard industrial floors and provide a different floor-contact characteristic than steel-wheel machinery rollers.

Why Choose Rotating Machine Moving Roller Skates?

Unlike rigid skates designed mainly for straight-line travel, rotating machine moving roller skates provide greater directional flexibility during machine relocation and final positioning.

The rotating roller assemblies allow operators to change the direction of travel without repeatedly lifting and repositioning the skate. This is especially useful when moving machinery through workshops, production areas or other locations where space for maneuvering is limited.

For equipment installation and factory layout changes, these rotating machinery roller skates also make it easier to align a machine with its final installation position.

What Can These Machinery Moving Dollies Be Used For?

Rotating machinery moving dollies are suitable for short-distance relocation and positioning of many types of heavy industrial equipment, including:

CNC machines and machine tools
Production and processing machinery
Generators and motors
Electrical and control cabinets
Industrial equipment and heavy assemblies
Machinery during factory relocation or production-line changes

Typical applications include machine installation, equipment maintenance, factory relocation, production-line rearrangement and final machinery positioning.

We have this item in stock in France/US, if you are located in Europe or US, we can arrange delivery to you ASAP! This way will save your time and shipping cost.

Types of skates:

Skates fixed type, skates with caster, rotating roller machine skates, steerable skates, adjustable skates, complete skate kits, turn table, packing plate, roller skates, etc....

After-sale service:

1 Year Limited Warranty
We have been in manufacturing machine roller skates for many years. And we have a professional and perfect after-sales service team.

Skates manufacturer:

As a professional manufacturer of various types of material handling & lifting products, skate is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase an type of skates, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.

FAQ

What are heavy duty machine moving skates used for?

Heavy duty machinery moving dollies are used to relocate and position industrial machinery and other heavy equipment over suitable floors. Typical applications include machine installation, factory relocation, equipment maintenance and production-line rearrangement.

How many machinery roller skates do I need?

The quantity depends on the machine dimensions, weight, support points and center of gravity. Multiple skates are commonly positioned beneath different load-bearing points of larger equipment.

Can these machine moving roller skates turn?

Yes. The iWCRP series uses rotating roller assemblies designed to allow directional changes and precise positioning, making them more maneuverable than fixed straight-line machinery skates.

What floor is suitable for heavy equipment roller skates?

These PU roller machine skates are best suited to smooth, level and sufficiently load-bearing industrial floor surfaces. The floor condition should always be checked before moving heavy machinery.

How do I place the skates underneath a machine?

The equipment must first be safely raised enough to position the machine skates beneath the appropriate support points. Industrial suppliers such as Grainger describe hydraulic jacks, hoists, forklifts and pry-bar-type equipment as common ways of raising machinery before skate placement.

Which model should I choose?

Choose according to equipment weight, dimensions, load distribution and required maneuverability. If you provide us with these details, we can help recommend an appropriate iWCRP model and quantity.
