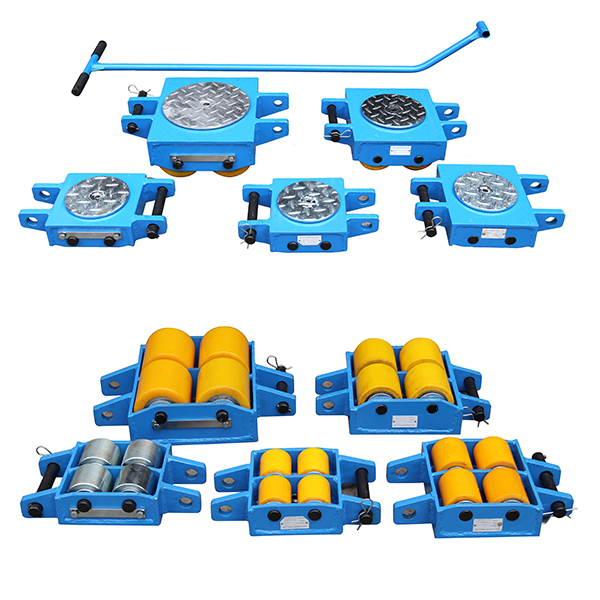

Shifting skates can be used wherever heavy objects have to be moved. The load can be lifted using either the roller crowbar or a jack, allowing the skates to be easily positioned.
The large diameter sealed nylon rollers ensure ease of movement and spread the load, protecting high quality floors from damage by high point loads and oin/grease contamination.
The skates are maintenance free and are fitted with handles for ease of carrying and positioning. The platforms of the skates are fitted with a rubber surface which helps stability and protect the object being moved.
The skates has models SW20, SW30, SW50, SW80, SW100
| i-lift No. | 1910101 | 1910102 | 1910103 | 1910104 | 1910105 | |
| Model | SW20 | SW30 | SW50 | SW80 | SW100 | |
| Capacity | kg(lb.) | 2000(4400) | 3000(6600) | 5000(11000) | 8000(17600) | 10000(22000) |
| Net weight | kg(lb.) | 13(28.6) | 17(37.4) | 32(70.4) | 42(93) | 20(44) |
| Running Distance | Steel road surface | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 |
| Concrete road surface | 0.07 | 0.07 | 0.07 | 0.07 | 0.07 | |
| Frame | A mm(in.) | 214(8.4) | 244(9.6) | 284(11.2) | 344(13.5) | 204(8) |
| K mm(in.) | 330(13) | 350(13.8) | 400(16) | 460(18.1) | 350(13.8) | |
| P mm(in.) | 270(10.6) | 290(11.4) | 340(13.4) | 400(16) | 290(11.4) | |
| H mm(in.) | 84(3.3) | 94(3.7) | 124(4.9) | 144(5.7) | 99(3.9) | |
| g mm(in.) | 15(0.6) | 14(0.6) | 29(1.1) | 34(1.3) | 19(0.7) | |
| S mm(in.) | 26(1) | 26(1) | 26(1) | 31(1.2) | 26(1) | |
| Roller | type | Urethane | Urethane | Urethane | Urethane | Steel |
| pcs | 4 | 4 | 4 | 4 | 4 | |
| d mm(in.) | 65(2.5) | 75(3) | 100(4) | 120(4.7) | 78(3) | |
| B mm(in.) | 75(3) | 90(3.5) | 110(4.4) | 140(5.5) | 70(2.8) | |
| Turn Table | D mm(in.) | 150(6) | 150(6) | 180(7) | 240(9) | 150(6) |
| t mm(in.) | 6(0.2) | 6(0.2) | 9(0.4) | 9(0.4) | 6(0.2) | |
| M | M16 | M16 | M20 | M20 | M16 |
Handles as option.
Types of skates:
Skates fixed type, skates with caster, rotating roller machine skates, steerable skates, adjustable skates, complete skate kits, turn table, packing plate, roller skates, etc....
After-sale service:
- 1 Year Limited Warranty
- We have been in manufacturing Skates for many years. And we have a professional and perfect after-sales service team.
Skates manufacturer:
As a professional manufacturer of various types of material handling & lifting products, skate is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase an the other type of skates, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
