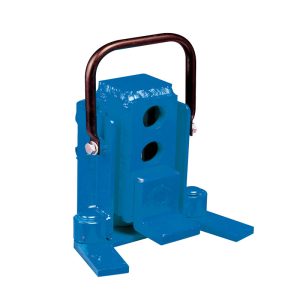

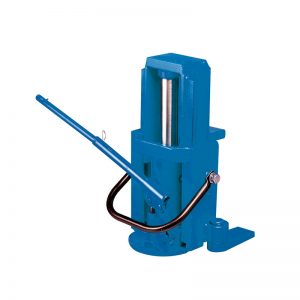

TG30& TG80 are super low profile lifting toe, adjustable lifting toe jack, heavy duty structure toe jack.
| i-lift No. | 2310801 | 2310802 | |
| Model | TG30 | TG80 | |
| Capacity | kg(Ib.) | 3000(6600) | 8000(17600) |
| Lifting Stroke | mm(in.) | 140（5.5） | 140（5.5） |
| Min.Toe Height | mm(in.) | 15(0.6) | 20(0.8) |
| Lifting Range | mm(in.) | 15-155(0.6-6.1) | 20-160(0.8-6.3) |
| Net Weight | kg(Ib.) | 21.5(47.3) | 28(61.6) |
The features of toe jack
1. Super low profile lifting toe for lifting all kinds of machinery;
2. Two models with 3T and 8T capacity, lifting height 15-155mm and 20-160mm;
3. Adjustable Lifting toe;
4. Conforms to CE standard;
5. Low Profile: Grab under low clearance load with high strength thin toe;
6. Convenience: Quickly adjust the jack's toe height to any starting position.
7. Protection: Trust in the precise lowering control for delicate operations.
8. Safeguard: Overload protection valve prevents damage to each toe jack.
9. Stability: Stable and safe support in any position with slide shoe design and swivel feet that adapt to available clearance.
10. Heat treated piston resists corrosion
After-sale service:
- Each equipment comes with specs instruction
- 1 Year Limited Warranty
- We have been in manufacturing jack for many years. And we have a professional and perfect after-sales service team.
Types of jack:
As a professional jack manufacturer for many years, we have developed various kinds of jacks, such as hydraulic jack,steel jack,toe jack,stabilising jack,etc…
Jack manufacturer:
As a professional manufacturer of various types of material handling & lifting products, jack is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane,forlift attachment, skates, puller, hoist, lifting clamp and so on. If you would like to purchase one type of material handling equipments, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours
