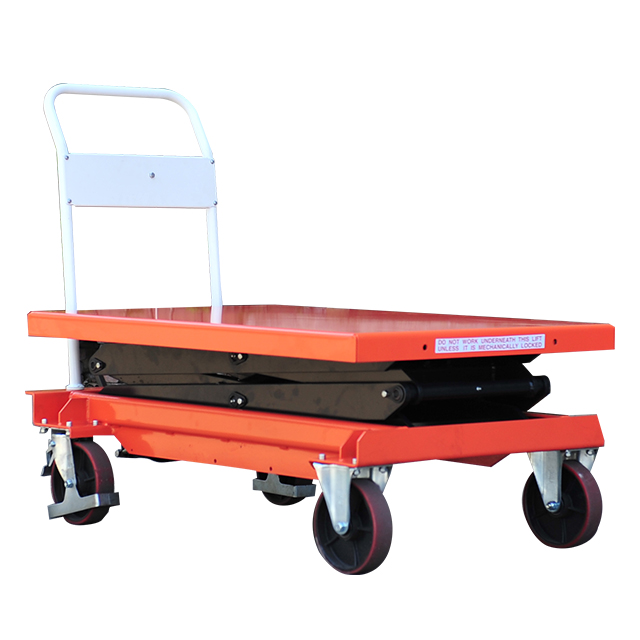

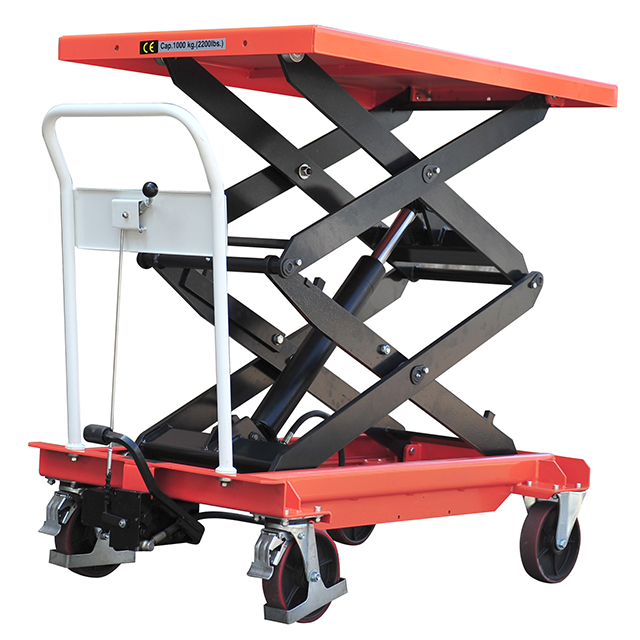

BS50LD Manual Mobile Scissor Lift Table BSL series

Description of BS50LD Manual mobile scissor lift table

BS50LD manual mobile scissor lift table is a hydraulic platform used to safely elevate, lower, or position heavy loads at an ergonomically convenient working height. This mobile table is typically operated by a foot pedal, allowing the user to raise or lower the platform as needed. Powered by a manual hydraulic mechanism, it enables workers to handle materials more efficiently while reducing physical strain.

If you want it more technical, more concise, or more marketing-focused, I can adjust it further.

Heavy duty range.

New design to meet norm EN1570:1999.

New hydraulic system increases safety and protects your goods,tepless rate of lowering system remains irrespectibe of the weight of the load.

Specification of BS50LD manual mobile scissor lift table

i-lift No.		1310410	1310411
Model		BS50LD	BS100LD
Capacity	kg(Ib.)	500(1100)	1000(2200)
Min.Fork Height	mm(in.)	470(18.5)	520(20.5)
Max.Fork Height	mm(in.)	2000(80)
Table Size	mm(in.)	1200800(47.231.5)
Handle Height	mm(in.)	1030(40.5)	(42.5)
Ground Clearence	mm(in.)	68.5(2.7)	125(5)
Lowering time	sec	22	44
Net Weight	kg(Ib.)	222(488.4)	242(532.4)

Details of BS50LD manual mobile scissor lift table

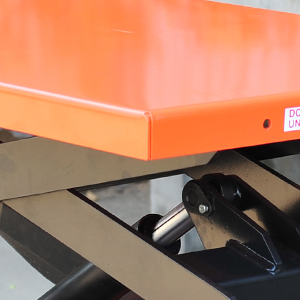

Exquisite workmanship

The countertops are all painted at high temperature and electrostatically sprayed. Smooth and clean surface, durable and corrosion-resistant

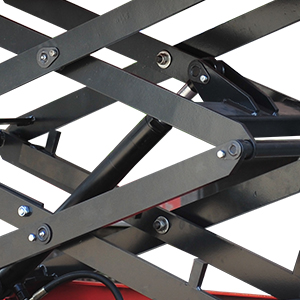

2. Thickened and stable scissors

Thickened scissors, durable and safe, strong load-bearing, stable performance

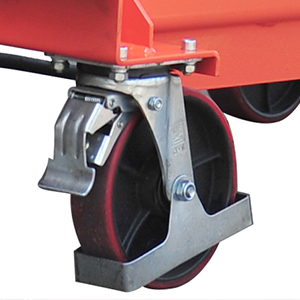

3. High-strength polyurethane wheels

The mute effect is stronger, the wheels are more wear-resistant, and the rear wheel has a brake

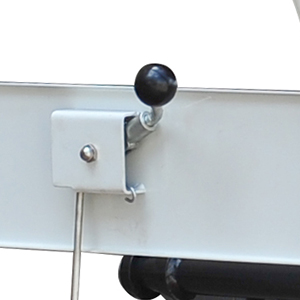

4. Descending handle, handle-type descending handle, precise control of descending speed

The rebound design can stop the descent at will

Advantages of Using Manual Scissor Lift Tables

When it comes to efficiency and convenience, manual scissor lift tables provide notable benefits for material-handling operations. Utilizing a hydraulic scissor mechanism, these tables deliver dependable lifting performance without the need for electricity.

Operators value their straightforward, intuitive controls, which allow for accurate positioning of heavy loads with minimal physical effort. Their compact structure also makes them highly maneuverable in confined areas, making them especially suitable for warehouses, workshops, and other space-restricted environments.

Furthermore, their durable construction and low maintenance requirements help reduce downtime and offer long-term cost savings.

Key benefits include:

Reduced physical strain – helps safeguard employees’ health and comfort.
Increased productivity – enables tasks to be completed faster and more easily.
Enhanced workplace safety – minimizes the risk of accidents or injuries.
Greater flexibility – adaptable to a wide range of work settings.
Cost savings – low operational and maintenance expenses.
