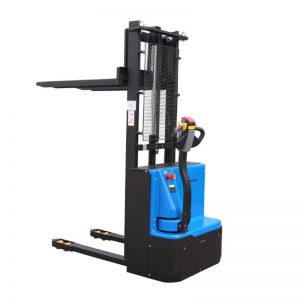

HH1216 power stacker

HH1216 power stacker is designed for stacking pallets on racks and loads transporting. It is very convenient, smooth,effiency, especially suitable for operating at narrow aisles, upstairs, elevators.As its low noise, little pollution, it is particularly suitable for food, medicine, textile and warehouse and so on.

An electromagnetic disc brake with automatic dead-man feature activates when the user releases the handle. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. Self-Propelled Powered Lift Truck is Easy to Use and Maintain.

This HH1216 is the most economic battery stacker with 1200kg(2640lbs) capacity, and 1600mm(63inch.) lifting height.

This HH1216 is used for standard pallets, electric stacker with straddle leg is optional if you need stackers to be used for special environments(special pallets).

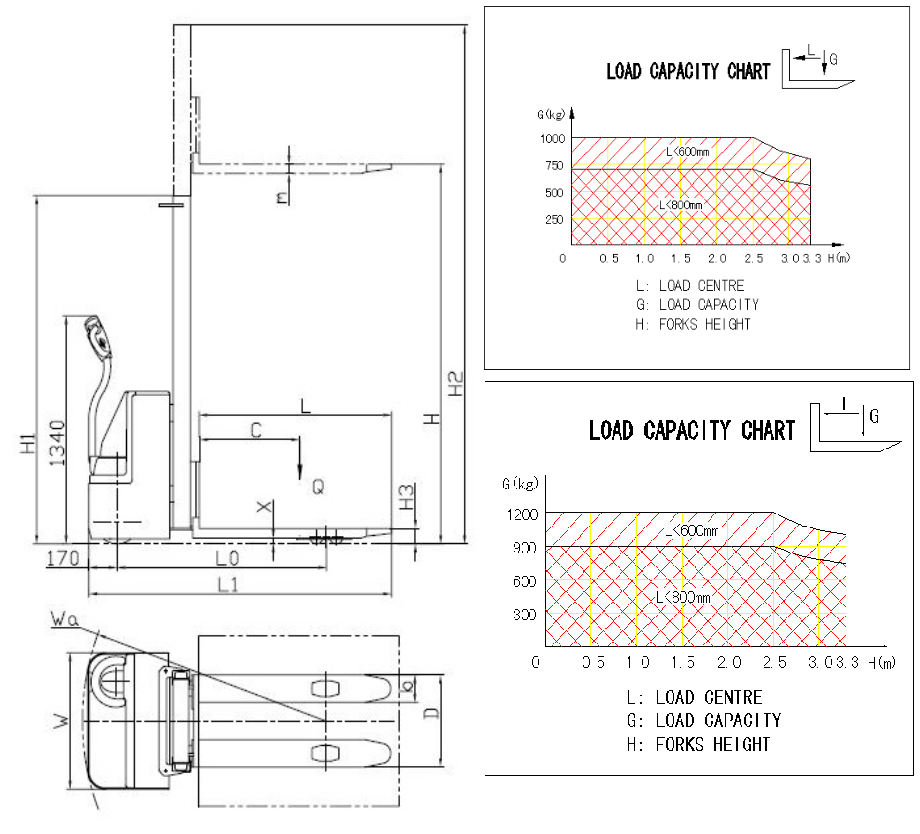

Model			HH1216
Power type			Battery powered
Driving style			Pedestrian
Load capacity                  Q		lbs	2640
Load center                      C		in	23.6
Overall length                 L1		in	71.5
Overall width                   W		in	31.5
Min. overall height         H1		in	83
Fork dimension  L×b×m		in	45.3×6.3×2.2
Outside width of forks     D		in	21.3
Ground clearance             x		in	1.14
Base distance                 L0		in	49
Wheel material			PU
Driving wheel size		in	φ9.8×3.1
Front wheel size		in	φ3×2.75
Balance wheel size		in	φ4.9×2.95
Min. steering radius               Wa		in	57.5
Min. width of aisle		in	≥84.6
Max. lift height                       H		in	63
Max. overall height                H2		in	83
Min. fork height                     H3		in	3.5
Travel speed（laden/unladen）		Km/h	3.5/4.0
Lift speed（laden/unladen）		in/s	5.3/9.05
Lowering speed（laden/unladen）		in/s	7.1/4.33
Brake type			Electromagnetic
Power of driving motor		Kw	0.7
Power of lift motor		Kw	2.2
Battery capacity/voltage		Ah/V	95/24
Weight of battery		lbs	110
Net weight		lbs	1199



1. Thickened C-shaped steel  frame: strong and stable, light and easy to load, convenient and labor-saving, more durable.

2. Ergonomic handle, comfortable and easy to operate.

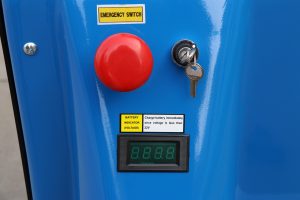

3. Deep discharge protection device: the electricity meter comes with battery protection function to ensure a longer service life of the battery.

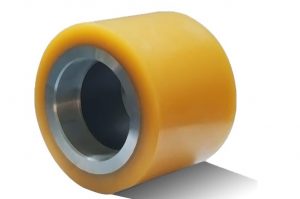

4. Easy to move: fixed fork double roller design, flexible and light moving, smooth and smooth driving, greater bearing capacity, and less noise.

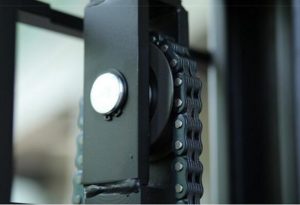

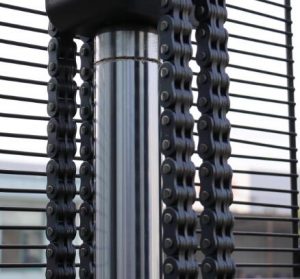

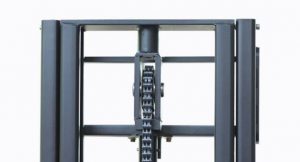

6. High-quality heavy-duty load-bearing chain, durable and not deformed. Protective net design, the vision is more wider and more safer.

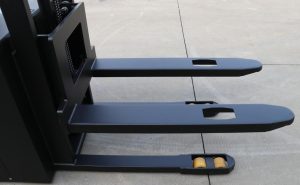

7. The fork is made of thickened steel, seamlessly welded, one-time forming, no deformation, no cracking, and stronger bearing. Straddle leg is optional .
