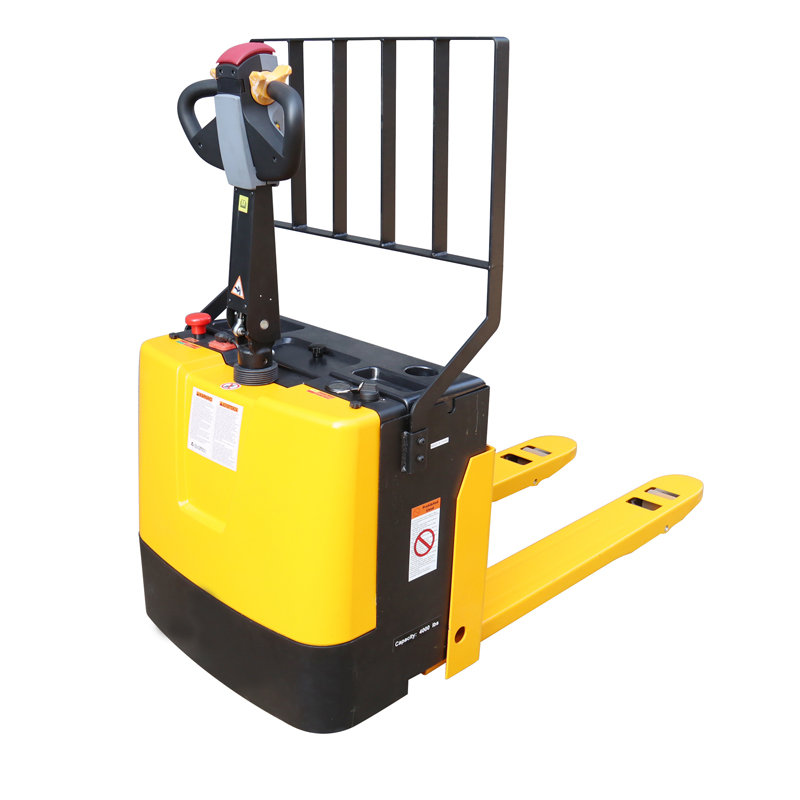

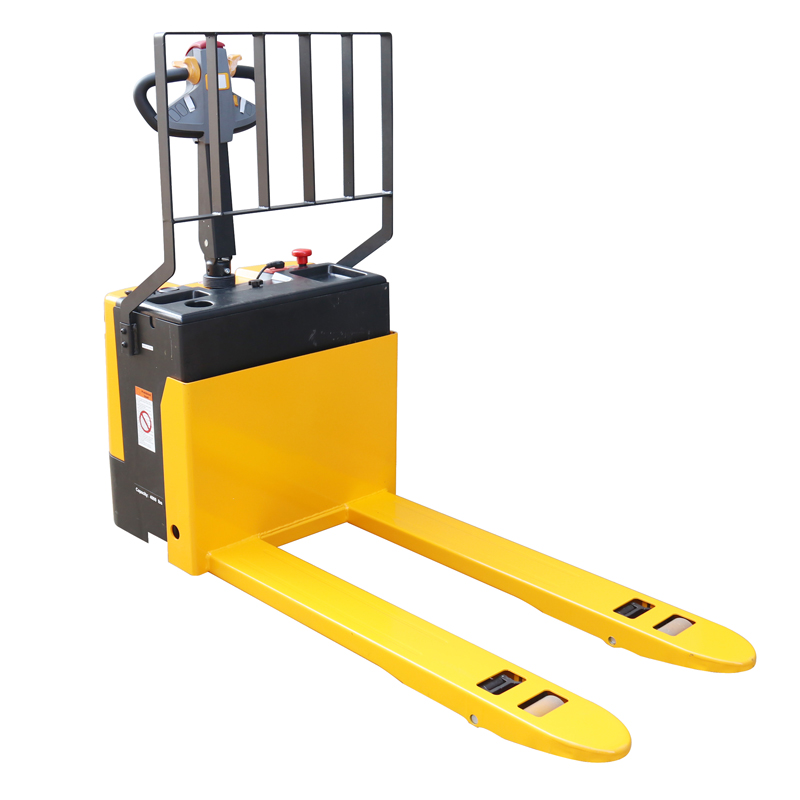

Powered Pallet Truck RA20W

  • Compact design with loading capacity 2000KG
  • Easy to operate in the narrow aisle and space
  • Standard: Built-in charger
  • Option: Built-out charger.

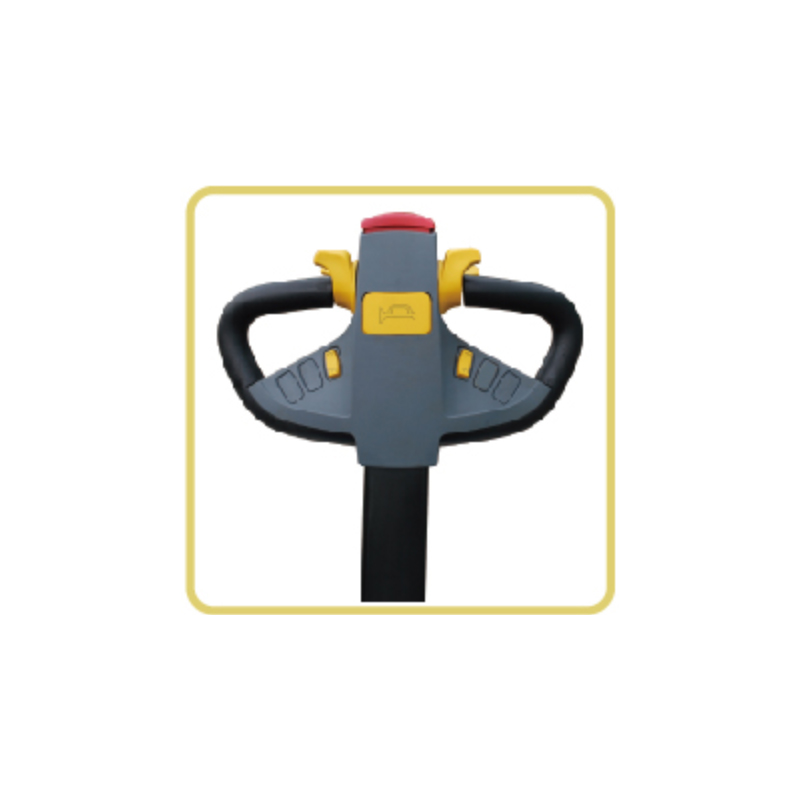

  • Curtis controller for smooth and responsive control
  • Curtis battery indicator.
i-lift No.1112206
ModelRA20W
Drive unitElectric
Operator typePedestrian
capacitykg(lb.)2000(4400)
Load centermm(in.)600(23.6)
Wheelbasemm(in.)1280(50.4)
Wheel materrial(Driving/balance/front wheel)Polyurethane
Wheel number (Driving/balance/front wheel)piece1/2/2
Driving wheel sizemm(in.)Φ190x70(7.5X2.8)
Balance wheel sizemm(in.)Φ70x35(3X1.4)
Front wheel sizemm(in.)Φ74x93(3X3.7)
Front wheel distancemm(in.)470（18.5）
Balance wheel distancemm(in.)485（19.1）
Min .fork heightmm(in.)75（3）
Max .fork heightmm(in.)195（7.7）
Overall lengthmm(in.)1715（67.5）
Length to front face of forksmm(in.)515（20.3）
Overall widthmm(in.)723（28.5）
Fork dimentionsmm(in.)50/160/1200（2x6.3x47.2）
Outside fork width dimensionmm(in.)630（24.8）
Ground clearancemm(in.)30（1.2）
Aisle width for pallets 1000x1200 crosswaysmm(in.)1630（61.2）
Aisle width for pallets 800x1200 lengthwaysmm(in.)1865（73.4）
Turning radiusmm(in.)1465（57.7）
Travel speed,with load /without loadkm/h2.5/3.5
Max.gradeability,with load /without load%6
Service brakeElectromagnetic brake
Drive motorkw0.85
Lift motorkw0.84
Battery V/Ah48V/45Ah
Battery weight2x17.5/2x20(2x38.5/2x44)
Chargerkg(lb.)100-240V/50-60hZ
Truck weightkg(lb.)255(562)

Types of pallet truck:

As a professional pallet truck manufacturer for many years, we have developed various kinds of stackers, such as the hand pallet truck, stainless pallet truck, 5 tonne pallet truck, low profile pallet truck, galvanized pallet truck, powered pallet truck，dual direction pallet truck, roll pallet truck, full electric pallet truck with Li-ion etc…

After-sale service:

  1. Each equipment comes with specs instruction
  2. 1 Year Limited Warranty
  3. We have been in manufacturing pallet truck for many years. And we have a professional and perfect after-sales service team

Pallet truck manufacturer:

As a professional manufacturer of various types of material handling & lifting products, pallet truck is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase one type of hand pallet truck or electric pallet truck (Li-ion), you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
