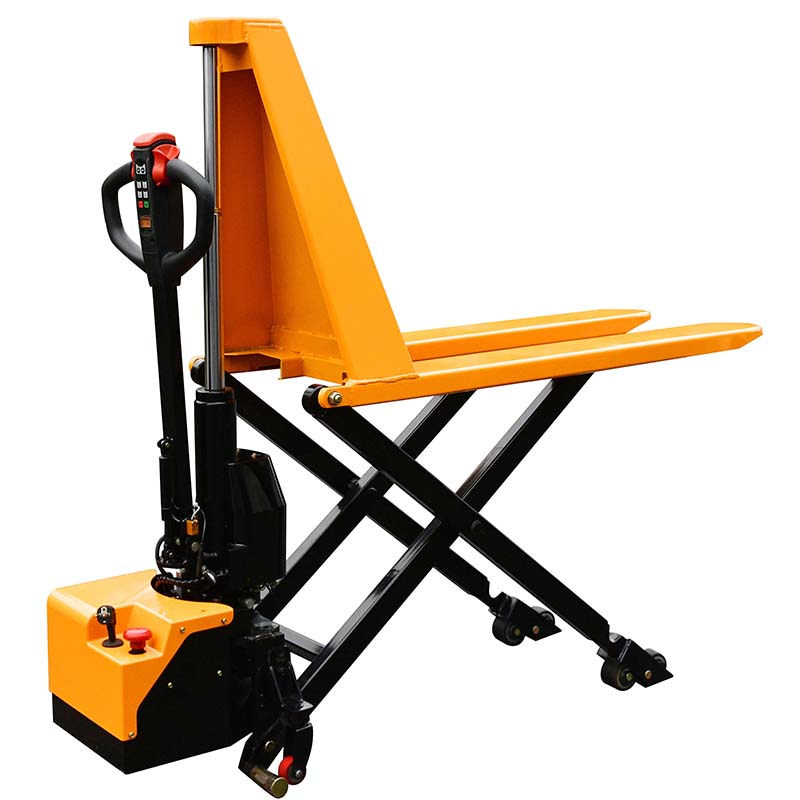

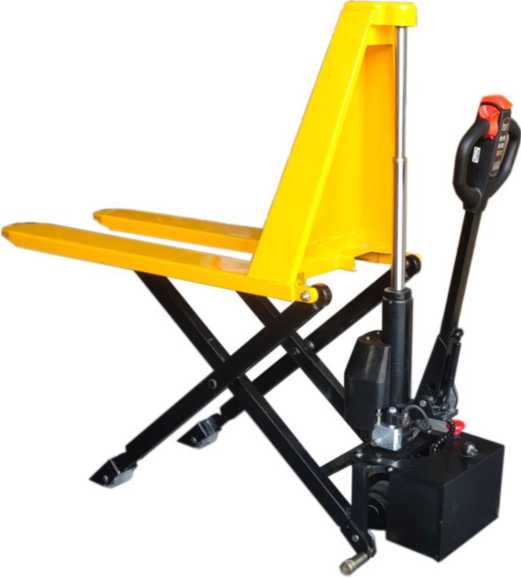

JEF5610 Full Electric High Lift Scissor Truck DGBZ series

The Features of Full Electric High Lift Scissor Truck :

  • New design with larger piston offer you real 1000kg capacity.
  • Extremely easy to operate and make this unit very suitable as combined pallet truck and lift table.
  • Automatic descending speed control by a uniquely hydraulic valve,the decending speed always keeps same regardless the truck with without load.It will prevent cargo damage from fast descending.
  • Ergonomic warm handle offers you simple and comfortable operation.
  • Heavy duty design.4mm steel pallet fork frame and larger lift piston ensure the truck the reach rated capacity.
  • Confroms to EN1757-4

We have this item in stock in France, if you are located in Europe, we can arrange delivery to you ASAP! This way will save your time and shipping cost.

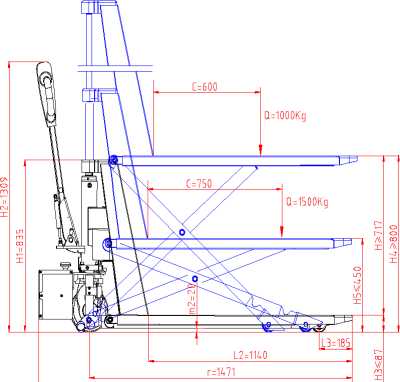

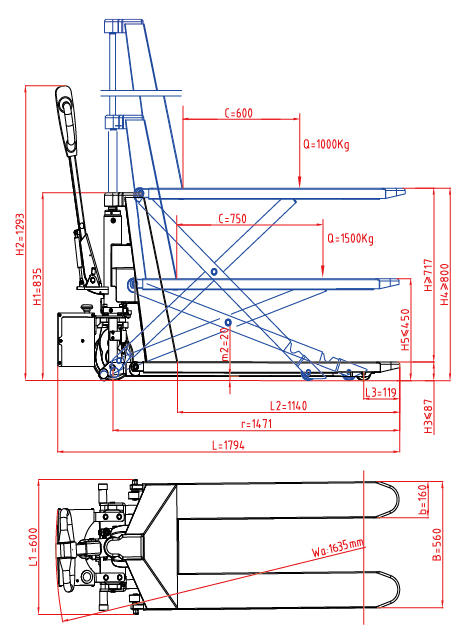

ModelJEF5610
Capacity Q(Kg)HW≤450mmH:0~800mm
15001000
Min.Fork Height H3(mm)85
Max.Fork Height H4(mm)≥800
Lift time,unladen (s)≤25
Lift time,laden   (s)≤25≤35
Lowering Speed≤0.1m/s
Fork Width B(mm)560
Single fork Width b(mm)160
Fork Length L2(mm)1140
Driving wheel performance parameters24V/750W
Driving wheels Size∅210x75
Overall Forks Length L (mm)1794
Turning Radius Wa (mm)1635
Load CenterC (mm)750600
Overall Forks Width L1 (mm)600
Overall Forks HeightH1 (mm)1293
Net Weight(Kg)172
Gross weight/net weight of two sets (Kg)355/335
Package size of two sets(cm)186x64.5x95
Battery parameters (lithium battery)weight5.4Kg/piece
Overall size222x175x88mm
Voltage/capacity24V20AH
Motor parameters of lifting pump station24V/800W
Travel speed (km/h)3
