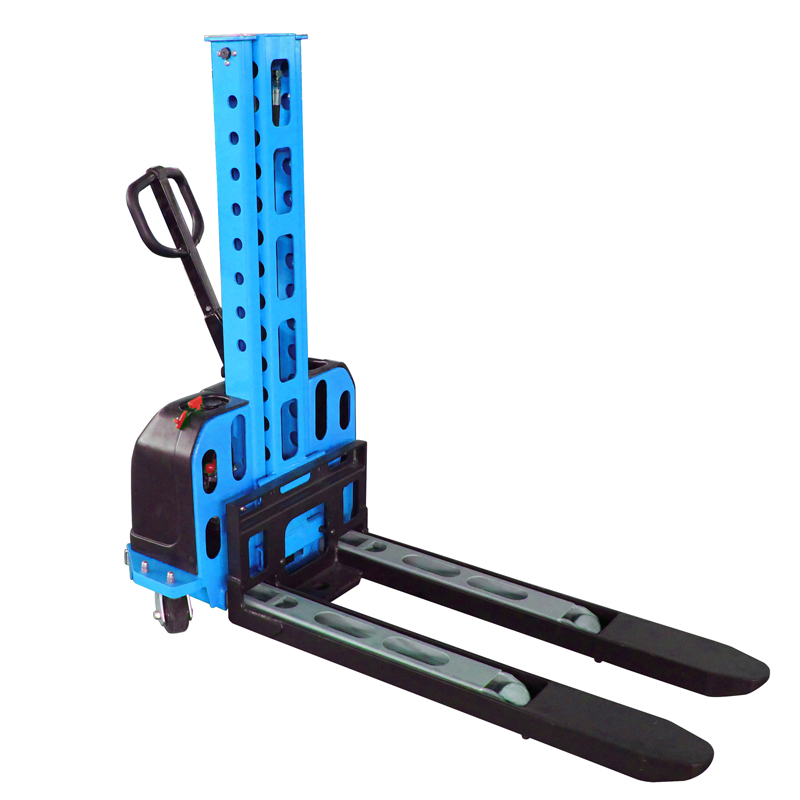

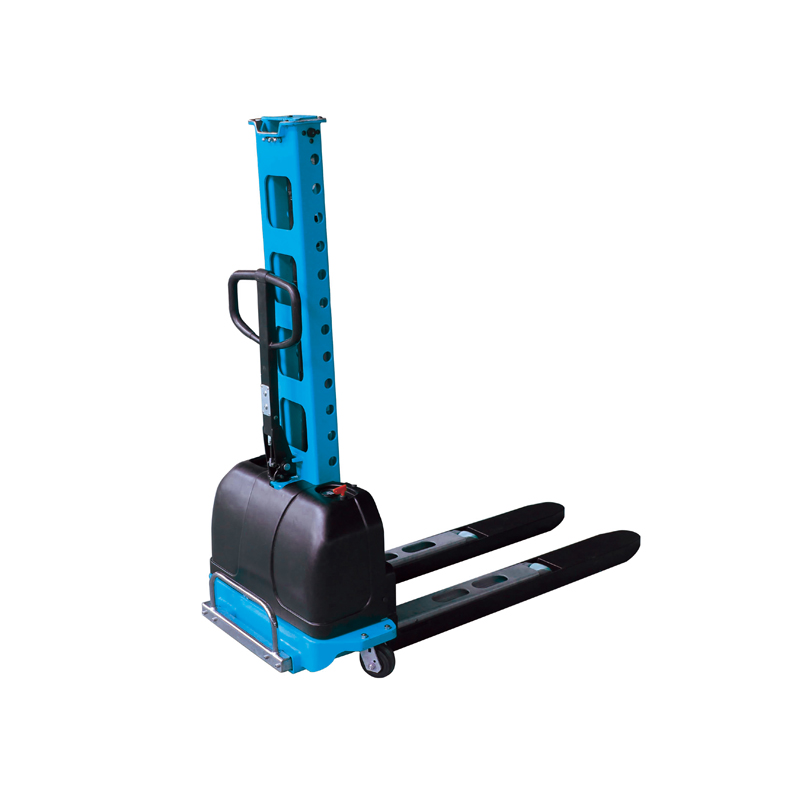

Self Lifting Semi Electric Stacker SDYG0511

Double linkae cylinder assembly

Both fork and frame can lift or be fixed

A versatile semi-electric stacker that lifts itself onto a lorry or van! It has a lifting capacity of up to 500kg up to 1300mm, travels with the load and a great alternative to having a tailgate.

i-lift No.	kg(lb.)	1551601	1551602
Model	mm(in.)	SDYG0511	SDYG0513
Rated capacity	mm(in.)	500(1100)
Load center	mm(in.)	400(15.7)
Max .fork height	mm(in.)	1100(44)	1300(51.2)
Min .fork height	mm(in.)	90(3.5)
Fork length	mm(in.)	1150(45.3)
Overall length	mm(in.)	1600(63)
Overall width	mm(in.)	790(31.1)
Overall height	mm(in.)	1400(55.1)	1600(63)
Whole height (after tape file shelf)	mm(in.)	2700(106.3)	2900(114.2)
Turning radius	mm(in.)	1100(44)	1120(44.1)
Fork overall Width	mm(in.)	535(21)
Wheels base	mm(in.)	860(33.9)
Front load wheel	mm(in.)	NylonΦ70x60（2.6x2.4)
Rear steering wheel	mm(in.)	NylonΦ100x50（4x2)
Balance wheel	mm(in.)	NylonΦ40x26（1.6x1)
Training wheel	mm(in.)	NylonΦ30x26（1.2x1)
Lifting speed(Without load)	(mm/s)	110
Lifting speed(With load)	(mm/s)	80
Lowering speed (without load)	(mm/s)	80
Lowering speed (with load)	(mm/s)	80
Motors lifting	kw	12V0.8
Battery capacity	V/Ah	12/33
Battery weight	kg(lb.)	10(22)
Net weight	kg(lb.)	197(433.4)	219(481.8)
