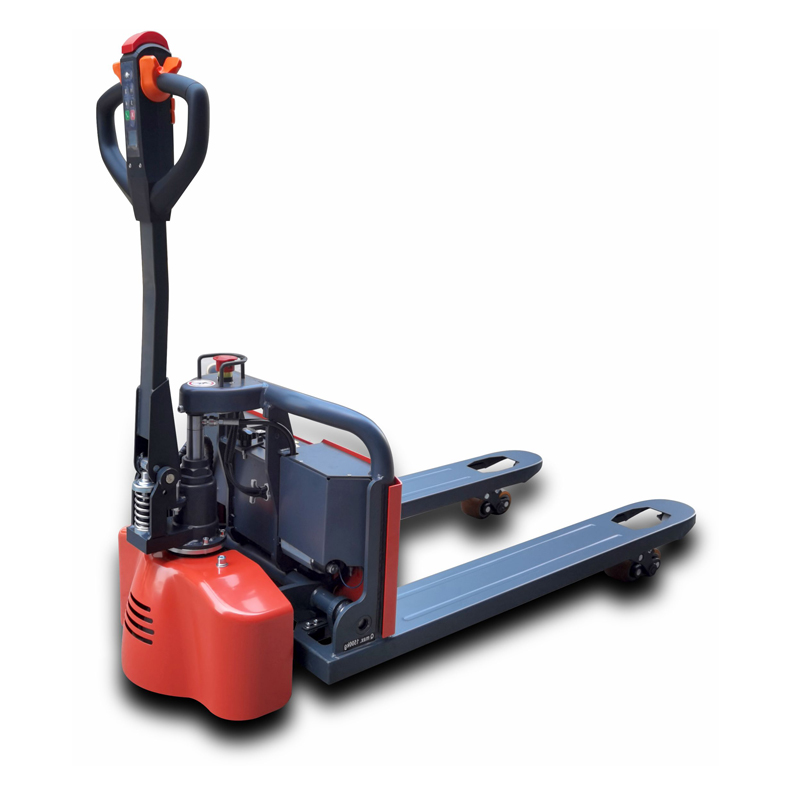

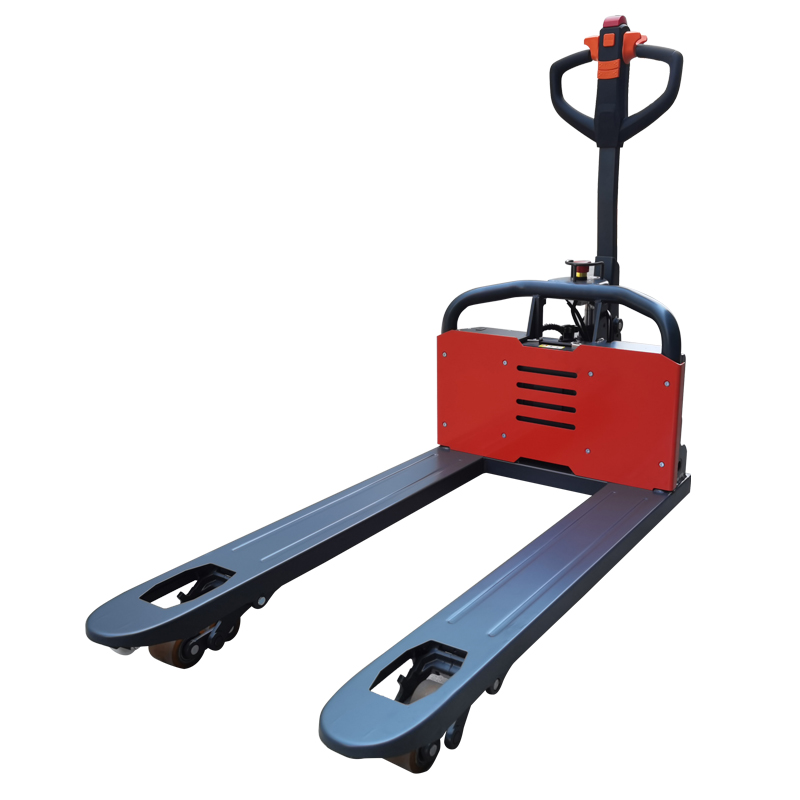

Mini Walkie Pallet Truck/Li-lon WPT15

  • Solid metal shields not only protect the drive system, but also protect the operator's feet from injury.
  • Bucher power pack with IP67 motor.
  • Ergonomic & Smart Tilter design ,integrated PIN code panel with LCD display for smart control and operation.
  • The turtle speed swith on the handle makes low speed control more precise
  • One step exchange Lithium-ion battery ,high reliable,standard 24V/25AH,option 24V/30AH
  • 2.5h Quick charging (24V/10A charger),4h long working time.
  • Quiet operation, Curtis control specially works in narrow aisle.
  • 72 units can be loaded in one 20 feet container.





i-lift No.111510111151021115103
ModelWPT15WPT18WPT20
Drive unitElectric
Operator typeWalkie
capacitykg(lb.)1500(3300)1800(3960)2000(4400)
Load centermm(in.)600(23.6)
Wheelbasemm(in.)1220(48)
Wheel materrial(Driving/balance/front wheel)PU
Wheel number (Driving/balance/front wheel)1/0/4
Driving wheel sizemm(in.)Φ210x70(8.3x2.8)
Front wheel sizemm(in.)Φ80x70(3.1x2.8)
Min .fork heightmm(in.)85(3.3)
Max .fork heightmm(in.)190(7.5)
Max .lifting heightmm(in.)105（4.1）110（4.3）110（4.3）
Outside width between forksmm(in.)560/680（22/26.8）
Inside width between forksmm(in.)240/360（9.5/14.2）
Fork lengthmm(in.)1150/1220（45.3/48）
Fork widthmm(in.)160（6.3）
Fork thicknessmm(in.)50（2）
Overall lengthmm(in.)1540（60.6）
Overall widthmm(in.)560/680（22/26.8）
Overall height( with/without handle)mm(in.)1250/560（49.2/22）
Turning radiusmm(in.)1350（53）
Travel speed,with load /without loadkm/h4.5
Max.gradeability,with load /without load%3/5
Service brakeElectromagnetic brake
Drive motorDC 0.75DC 0.85
Lift motorkwDC 0.5
Battery voltage/capacityV/Ah24V/25Ah48V/15Ah(25Ah&30Ah)
Battery weightkg(lb.)5(11）6（13.2）
ControllerCurtis
Truck weightkg(lb.)148(325.6)155(341)155(341)

Details:







Types of pallet truck:

As a professional pallet truck manufacturer for many years, we have developed various kinds of pallet jack, such as the hand pallet truck, stainless pallet truck, 5 tonne pallet truck, low profile pallet truck, galvanized pallet truck, dual direction pallet truck, roll pallet truck, full electric pallet truck with Li-ion etc…

After-sale service:

  1. Each equipment comes with specs instruction
  2. 1 Year Limited Warranty
  3. We have been in manufacturing pallet truck for many years. And we have a professional and perfect after-sales service team

Pallet truck manufacturer:

As a professional manufacturer of various types of material handling & lifting products, pallet truck is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase one type of hand pallet truck or electric pallet truck (Li-ion), you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
