HCB05 heavy-duty manual lever hoist, hoist -iliftequip.com

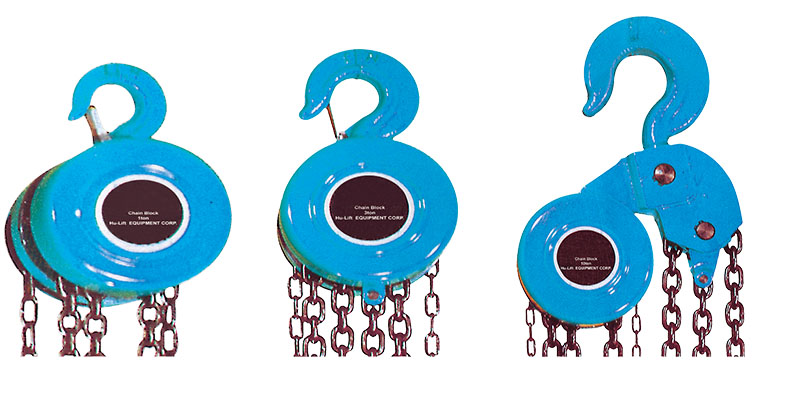

The heavy-duty manual lever chain hoist is a hand-operated hoist that is easy to use and easy to carry. It is strong and wearable and has high safety performance. It is suitable for use in factories, mines, construction sites, docks, docks, warehouses, etc. The installation of machines and lifting of cargo, especially for open and no-power operations, shows its superiority.

The lever hoist has model HCB10, HCB20, HCB30, HCB50, HCB100, HCB200 for different capacity 1ton, 2ton, 3ton, 5ton, 10ton, 20ton.

Features:

Compact design，all steel construction,light handpull
2,200 lb. lifting capacity is more than enough for most industrial applications
Hand-powered hoist uses load-sharing gears which makes lifting heavy loads easy
Drop-forged hooks designed to bend slowly to warn of overloads.
Built to meet CE safety standard

i-Lift No.		2110602		2110604		2110605		2110606		2110607		2110608
Model		HCB10		HCB20		HCB30		HCB50		HCB100		HCB200
Rated Capacity	Kg(lb)	1000(2200)		2000(4400)		3000(6600)		5000(11000)		10000(22000)		20000(44000)
Standard lifting height	mm(in.)	2500/3000（100/120）				3000/5000(120/200)
Test load	KN	12.5		25		37.5		62.5		125		250
Effort to rated capacity	N	310		320		360		400		430		430
No. Of load chain falls		1		2		2		2		4		8
Min.Distance between Hooks H	mm(in.)	300(12)		380(15)		470(18.5)		600(23.6)		730(28.7)		1000(40)
Dia. Of load chain	mm(in.)	Ø6x18		Ø6x18		Ø8x24		Ø10x30		Ø10x30		Ø10x30
		(0.2x0.7)		(0.2x0.7)		(0.3x0.9)		(0.4x1.2)		(0.4x1.2)		(0.4x1.2)

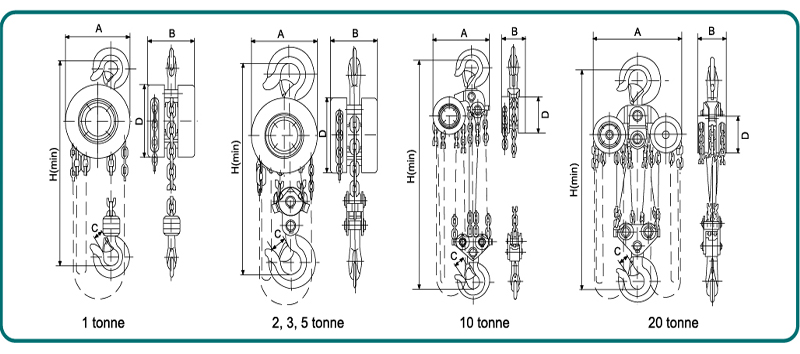

Dimensions	A mm(in.)	142(5.6)		142(5.6)		178(6.8)		210(8.3)		358(14.1)		580(22.8)
	B mm(in.)	130(5.2)		130(5.2)		139(5.6)		162(6.4)		162(6.4)		189(7.4)
	C mm(in.)	22(0.9)		26(1)		32(1.2)		44(1.7)		50(2)		70(2.7)
	D mm(in.)	142(5.6)		142(5.6)		178(6.8)		210(8.3)		358(14.1)		580(22.8)
Net Weight	kg(lb.)	9.2(20.2)	10(22)	12(26.4)	14(30.8)	20.2(44.4)	22.7(50)	32(70.4)	35(77)	65(143)	68(150)	148(325.6)	155(341)
Gross Weight	kg(lb.)	9.6(21)	10.4(23)	13.1(28.8)	14.5(31.9)	20.8(45.8）	23.3(51.3)	33(72.6)	36(79.2)	67(147.4)	80(176)	150(330)	180(396)
Extra Weight Per Metre of Extra Lift	(pcs)	1.65		2.5		3.7		5.2		9.6		19.2

Operation procedure:

1.It is strictly forbidden to use the cable pull overload.

2.It is strictly forbidden to operate with other powers other than manpower.

3.Before use, make sure that the parts are intact, the transmission parts and the lifting chain are well lubricated, and the idling condition is normal.

4.Check whether the upper and lower hooks are hung before lifting, and the lifting chain should be hung vertically. There must be no twisted links, and the lower hook frame of the double-row chain must not be turned over.

5.The operator should stand in the same plane as the bracelet wheel to sway the bracelet, so that the bracelet wheel rotates in a clockwise direction, so that the weight can be raised; when the bracelet is reversed, the weight can be slowly lowered.

6.When lifting heavy objects, it is strictly forbidden for personnel to do any work or walking under heavy objects to avoid major accidents.

7.During the lifting process, no matter whether the weight rises or falls, when the bracelet is pulled, the force should be even and gentle. Do not use excessive force to avoid the bracelet jumping or the snap ring.

8.If the operator finds that the pull force is greater than the normal pull force, it should stop using it immediately. Prevent damage to the internal structure to prevent accidents.

9.After the heavy object has landed safely and securely, remove the hook from the chain.

10.After use, gently handle, put it in a dry, ventilated place, and apply the lubricating oil.
