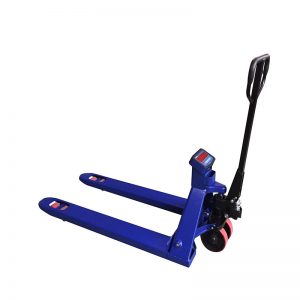

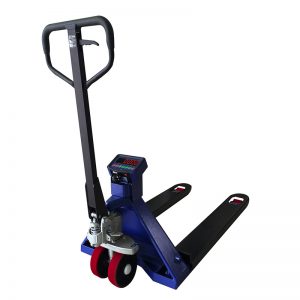

MW20 pallet jack with scale

The MW series pallet jack with scale is a Pallet Jack and Scale combination that allows you to weigh the cargo in transit. There is no need to move the load to a platform scale, as this multi-purpose mobile weighing truck allowing you to quickly verify incoming and outgoing freight. Truck displays up to 4400 lb. capacity in 10 lb. increments, and the load cells that are integrated within the forks are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. Large, easy to read LED character display with a membrane keypad provides functions for gross, net, tare, and total. All electronics are shock mounted and contained in a rugged enclosure. Operates on batteries (not included); battery life in continuous use is 75 hours using dry cell alkali or 25 hours using NiCad (nickel cadmium). Scale includes variable automatic shut-off and low battery shutoff. Truck features an easy to operate 3-function hand control (raise/neutral/lower) and a low profile (3 or 3.3") lowered fork height. 1 Year Limited Warranty.

    MW20-B                                                            MW20-BSS

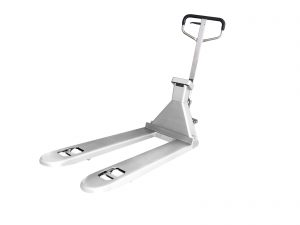

Stainless steel pallet jack with scale, weighing pallet jack with printer are all optional for this series.

i-lift No.12122011212202
Capacity kg(lb.)2000(4400)
Max.fork height mm(in.)195/205(7.7/8)
Min.fork height mm(in.)75/85(3/3.3)
Fork Length mm(in.)1150/1220(45.3/48)
Width overall forks mm(in.)540/680(21.3/27)
Forks inside witdth mm(in.)220/360(8.7/14.2)
Width of single fork mm(in.)160(6.3)
Net Weight kg(lb.)128(281.6)136(299.2)

Types of mobile weighing pallet cart:

As a weighing truck manufacture, i-Lift has single sensor scale pallet truck load indicator (SSS25L), high lift scissor truck with scale(HB), pallet truck scale (MW), mobile weighing cart with Galvanized (ZFG20), mobile weighing cart with stainless #316 (ZFS), mobile floor scale (NC), "U" table scale (ND), low profile floor scale (NA), crane scale (CW)    and so on.

After-sale service:

  1. Each equipment comes with specs instruction
  2. 1 Year Limited Warranty
  3. We have been in manufacturing Pallet Truck Scale for many years. And we have a professional and perfect after-sales service team.

Pallet truck scale manufacturer:

As a professional manufacturer of various types of material handling & lifting products, pallet truck scale is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane, drum handling, forlift attachment, skates, jack, puller, hoist, lifting clamp and so on. If you would like to purchase one type of material handling equipments, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
