CA20S economic pallet truck

Rugged construction and excellent pricing make this economic pallet truck the best value for your material handling needs. Forks feature entry rollers and tapered design for easy pallet and skid entry, and are reinforced for heavy duty loads. This pallet jack has a 3-function hand control (raise, neutral and lower) and offers a spring-loaded self-righting safety loop handle to enhance comfort and ease of operation. Hardened chrome piston with protective dust cover ensures long, dependable service of this skid lift jack. Floor protective polyurethane steer and load wheels. Durable powder coat finish.

The hydraulic pallet jack has model: CA20S, CA20L, CA25S, CA25L.

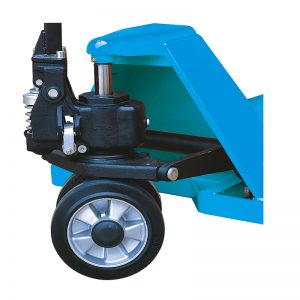

▲Reliable hydraulic pump:German made seal kits afford hydraulic pump. Unique technology on this pump, descending speed is of the load.

▲Bushings in key points:Longer life span and easily reparable.

▲Easy pallet entry and exit: Fork tip and tapered mounting bracket design for entry roller, provide protection for the roller itself and the load wheel, it is easier for entry and exit from pallet.

▲Durable frame by heavy duty design: Heavy-duty design with high quality steel plate and sturdy continuous welds thoughout.

Conforms to EN1757-2.



i-Lift No.1110201111020211102031110204
ModelCA20SCA20LCA25SCA25L
Capacity kg(lb.)2000(4400)2500(5500)
Max.fork height mm(in.)205 or 195(8.1 or 7.7)
Min.fork height mm(in.)85 or 75(3.3 or 3)
Fork Length mm(in.)1150(45.3)1220(48)1150(45.3)1220(48)
Fork overall width mm(in.)530(20.9)685(27)530(20.9)685(27)
Net Weight kg(lb.)70(154)73(160.6)72(158.4)75(165)

As a pallet truck manufacture(pallet jack manufacture), i-Lift also have electric pallet truck, high lift scissor pallet truck, rough terrian pallet truck, hand pallet truck(hydraulic pallet truck), low profile pallet truck, stainless pallet truck, galvanized pallet truck, roll pallet truck, pallet truck with scale, skid lifter pallet truck, weighing pallet truck and so on.

SAFETY RULES of Manual Pallet Truck(manual pallet jack)

For safe operation of the Hand Pallet Truck, please read all warning signs and instructions here and on the pallet truck prior to use.

  • Safety rules

To avoid hazardous situations, you should obey the following rules:

  • Fall Hazard

Do not use as a personnel lifting platform or step.

  • Tip-over Hazards

Do not overload the machine.

The machine can be only used on a firm, level surface.

Do not use the machine on the condition of drop-offs, holes, bumps, debris, unstable surfaces or other possible hazardous conditions.

The machine can be only used in the light environment of at least 50LUX.

  • Collision hazards

Do not lift if the load is not properly centered on the forks. Check the “Diagram of correct centered load” on the manual for correct load center position.

Check the work area for overhead obstruction or other possible hazards.

4)  Bodily Injury Hazards

Recommended operators to wear safety shoes and gloves.

Do not put the hands and feet under the forks when using the machine.

5)  Improper Use Hazard

Never leave a machine unattended with a load.

  • Damaged Machine Hazards

Do not use a damaged or malfunctioning machine.

Conduct a thorough pre-operation inspection prior to each use.

Be sure that all decals are in place and legible.

  • Lifting Hazard

Use proper lifting techniques to load the machine.
