TYX-4 Wire Rack

The Features of Work Positioner

  • The combined structure is used to facilitate disassembly, packaging and transportation.
  • Applicable to all kinds of wire, fiber, cable.

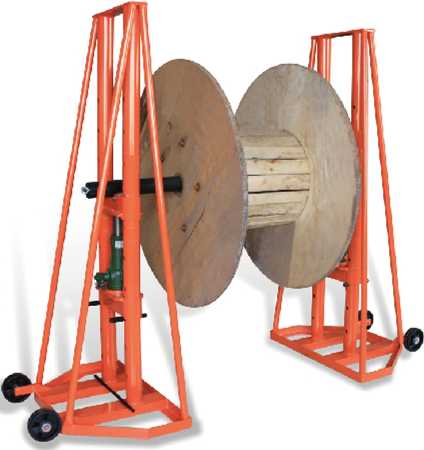

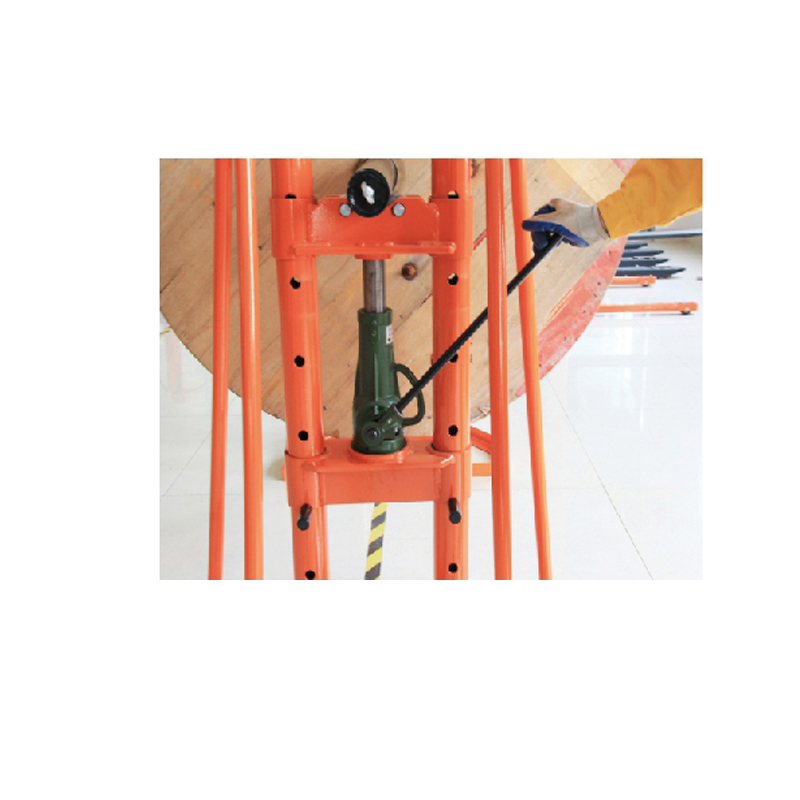

  • After the reel is installed, the jack can be easily lifted to a certain height through the pressure bar to meet the requirements of different working conditions
  • Two mobile wheels are installed on both sides of the bracket to solve your transportation problem.
  • Wide range of applicable coil diameters:Φ 1500mm- Φ 3500mm(59´-137.8´) ;Applicable coil width: 100mm-1200mm(3.9´-47.2´).



i-Lift No.25150012515002

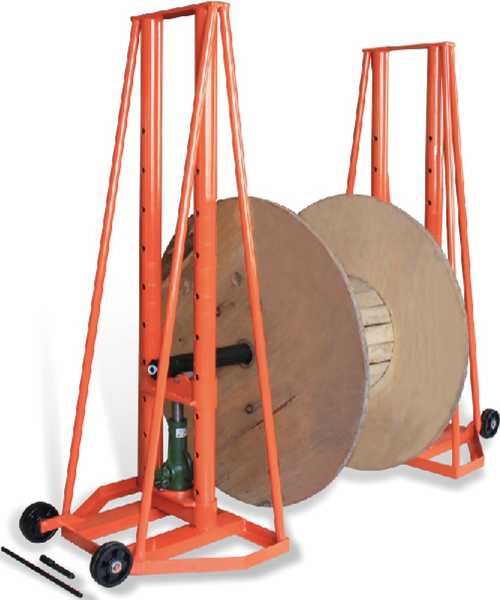

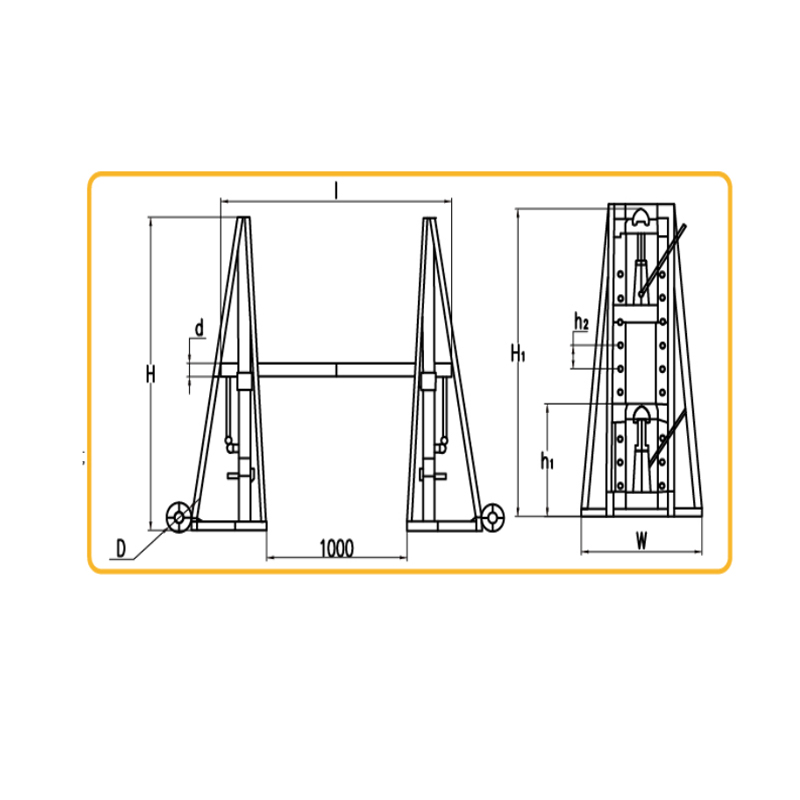

ModelTYX-4TYX-4A
Capacity                                 kg(lb.)4000(8800)8000(17600)
Adjustable Spacing           h2 mm(in.)140(5.5)
Max. Position Height        H1 mm(in.)1640(64.6)1800(70.9)
Min. Position Height         h1 mm(in.)540(21.3)680(26.8)
Shaft Size                       lxd mm(in.)1650XΦ76(65XΦ3)
Wheel Diameter                 D mm(in.)Φ150(5.9)
Overall Dimension         WxH mm(in.) 860 X 1867(33.9x73.5) 1260X 1867(49.6x73.5)
Net Weight                             kg(lb.)228(501.6)278(611.6)

Scope of application
◆Supporting the wire disc with using the matching fork when placing the wire in the wild.
◆The modular structure makes it easy to disassemble packaging and transportation.
Precautions
◆Apply to using on the ground in the wild;
◆The speed of the take-up rack should be less than 2Km/h and cannot be steered;
◆The load of wire reel should be reasonably distributed according to the load capacity of the take-up rack and the forklift attachment, and overload or partial load isn’t allowed;
◆Each runner bearing and shaft part should be inspected regularly every 3 months, add lubricating oil (fat), check and lock each pin and moving parts;
◆Lock the T-screw to prohibit shifting with the fork;
◆When releasing and receiving the line, it should be braked with manual timely, and forced to push under the non-braking state;
◆Special note: This machine is non-insulating antistatic material to avoid electrical safety accidents;
◆It is banned to using this machine when the temperature is more than 120℃and the environment with strong acid, phenol, chlorine, sodium hypochlorite, barium chloride, etc.
