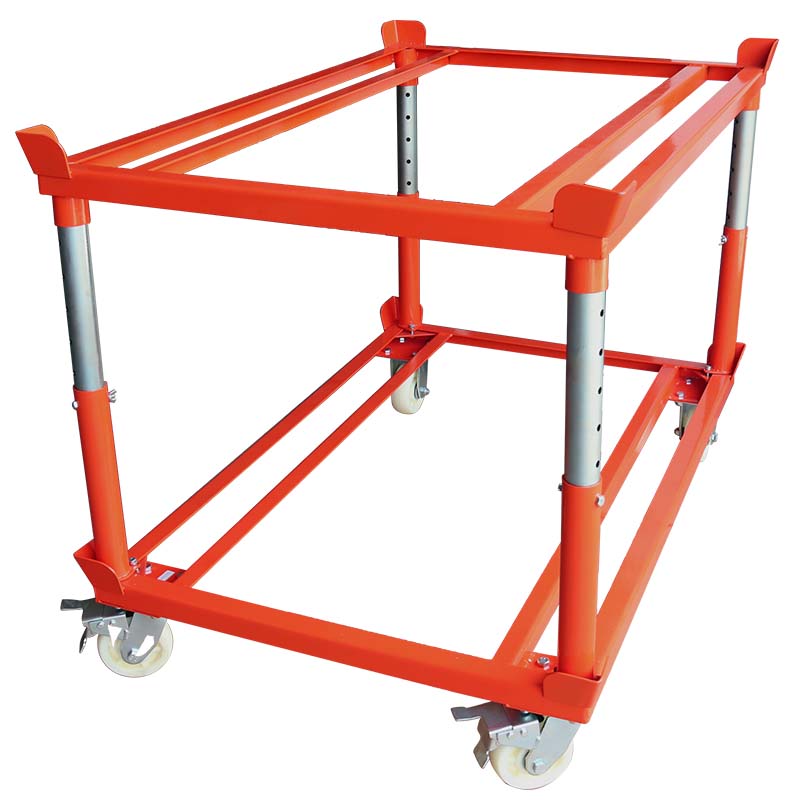

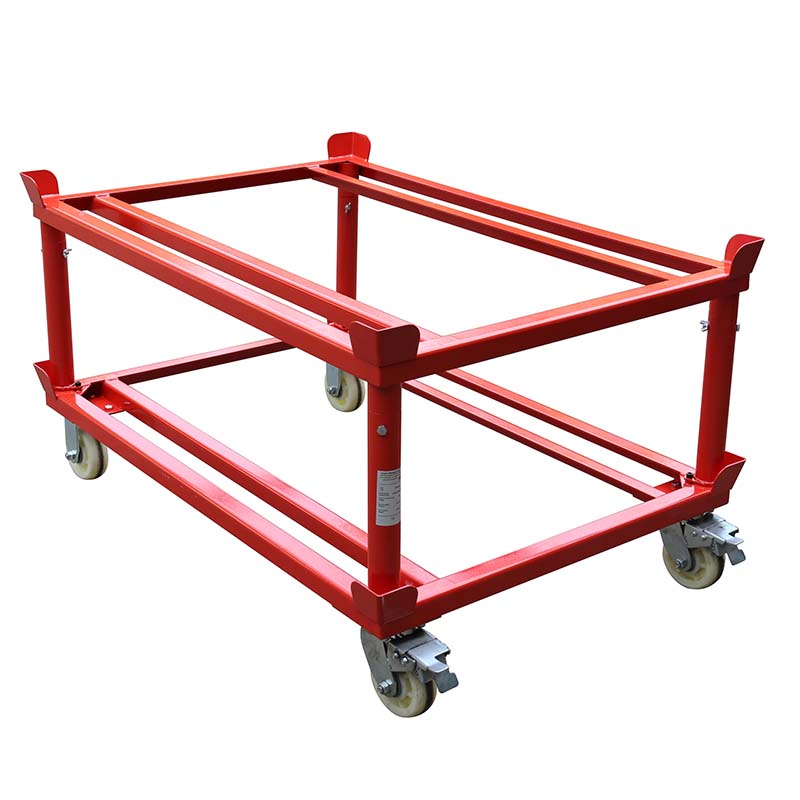

TP-1208N-D Stacking Frames for Pallet Dollies

The Features of Stacking Frames for Pallet Dollies :

  • Stacking frames for pallet dolies. For parking flat pallets and pallet cages at an ergonomically comfortable level.
  • Angle steel construction with catch corners, sturdy tubular supports with base plates.
  • Stable support tubes with foot plates, to be inserted into corner sleeves at the stacking frame, Powder coatedStacking frames can be bolted tight with the pallet dolly via base plates and bolting set(included in delivery).
i-lift No.1512206
Heightmm(in.)600,650,700,750,800,850 (23.6,25.6,27.5,29,5,31.5,33.5)
Capacitykg(lb.)1200(2640) @ height 600,650(23.6,25.6)
kg(lb.)1000(2200) @ height 700,750(27,5,29.5)
kg(lb.)800(1760) @ height 800,850(31.5,33.5)
Platform Size LxWmm(in.)1210x810(47.6x31.9)
For Pallet Size LxWmm(in.)1200x800(47.2x31.5)
Wheelsmm(in.)Polyamide <t>125x45(05x1.8)
Net weightkg(lb.)45(99)
