HPL/HPM series low profile pallet truck (super low profile pallet jack) has a built in overload valve and totally sealed hydraulic pump, german seal kit offers long span life of pump. Heavy duty and reinforced forks for greatest strength and durability. Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.
Low profile designed for super low pallet transporting.
Maintenance free oil-less bushings at key points reduce operating force and prolong life span of the pallet truck.
Rugged construction and excellent pricing make this pallet truck the best value for your material handling needs. Forks feature entry rollers and tapered design for easy pallet and skid entry, and are reinforced for heavy duty loads. This pallet jack has a 3-function hand control (raise, neutral and lower) and offers a spring-loaded self-righting safety loop handle to enhance comfort and ease of operation. Hardened chrome piston with protective dust cover ensures long, dependable service of this skid lift jack. Floor protective polyurethane steer and load wheels. Durable powder coat finish.
The low profile pallet jack has model HPL20S, HPL20L, HPM10S, HPM10L. HPL20,HPL20S is suitable for handling pallets with the fork opening less than 60mm from the ground, and HPL10,HPM10S is suitable for handling pallets with the fork opening less than 40mm from the ground. If you need a Standard Hand Pallet Truck please check here, as it is suitable for most types of pallets.
| i-Lift No. | 1110601 | 1110602 | 1110701 | 1110702 | |
| Model | HPL20S | HPL20L | HPM10S | HPM10L | |
| Type | Low profile | Super low profile | |||
| Capacity | kg(lb.) | 2000(4400) | 1000(2200） | ||
| Max.fork height | mm(in.) | 170(6.7) | 95(3.7) | ||
| Min.fork height | mm(in.) | 55(2.2) | 36(1.4) | ||

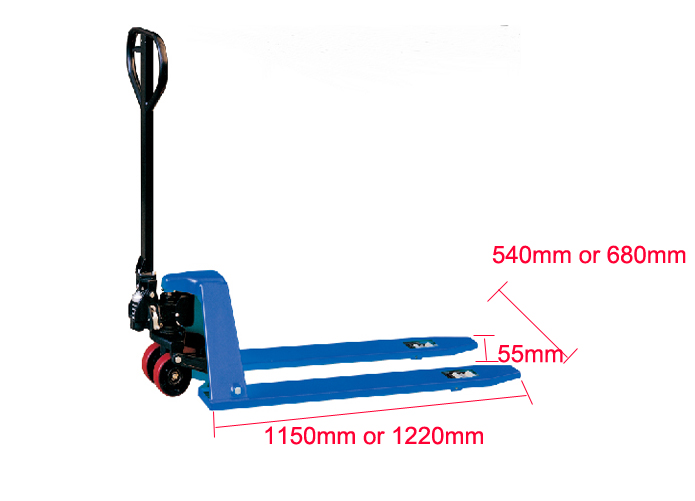

| Fork Length | mm(in.) | 1150(45.3) | 1220(48) | 1150(45.3) | 1220(48) |
| Width overall forks | mm(in.) | 540(21.3) | 680(27) | 540(21.3) | 680(27) |
| Individual fork width | mm(in.) | 75(165) | 79(173.8) | 70(154) | 74(162.8) |
As a pallet truck manufacture(pallet jack manufacture), i-Lift also have electric pallet truck, high lift scissor pallet truck, rough terrian pallet truck, hand pallet truck(hydraulic pallet truck), low profile pallet truck, stainless pallet truck, galvanized pallet truck, roll pallet truck, pallet truck with scale, skid lifter pallet truck, weighing pallet truck and so on.
SAFETY RULES of Manual Pallet Truck(manual pallet jack)
For safe operation of the Hand Pallet Truck, please read all warning signs and instructions here and on the pallet truck prior to use.
- Safety rules
To avoid hazardous situations, you should obey the following rules:
- Fall Hazard
Do not use as a personnel lifting platform or step.
- Tip-over Hazards
Do not overload the machine.
The machine can be only used on a firm, level surface.
Do not use the machine on the condition of drop-offs, holes, bumps, debris, unstable surfaces or other possible hazardous conditions.
The machine can be only used in the light environment of at least 50LUX.
- Collision hazards
Do not lift if the load is not properly centered on the forks. Check the “Diagram of correct centered load” on the manual for correct load center position.
Check the work area for overhead obstruction or other possible hazards.
4) Bodily Injury Hazards
Recommended operators to wear safety shoes and gloves.
Do not put the hands and feet under the forks when using the machine.
5) Improper Use Hazard
Never leave a machine unattended with a load.
- Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection prior to each use.
Be sure that all decals are in place and legible.
- Lifting Hazard
Use proper lifting techniques to load the machine.
