Electric Fork Stacker EZ series

● Easier and faster lifting operation.

● High quality hydraulic motor.

● Service free battery.

● Non-marking castor as standard.

● Hard chromium plated frame.

● Stable chassis with 2 frame rollers and 2 steering rollers.

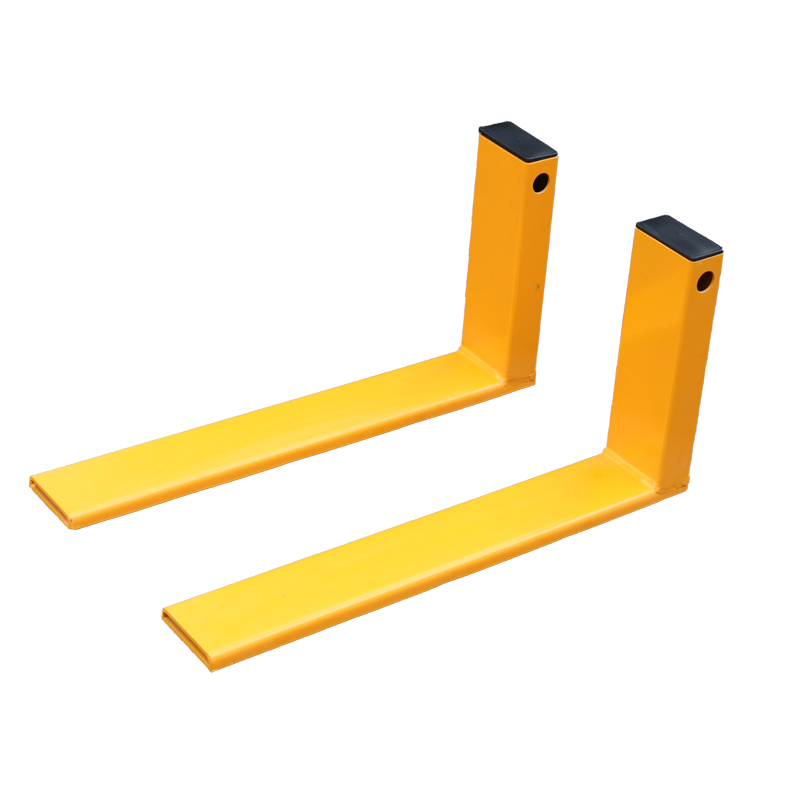

● Two different styles of fork are available.

● Conforms to 1757-1:2001.

i-Lift No.15520011552002

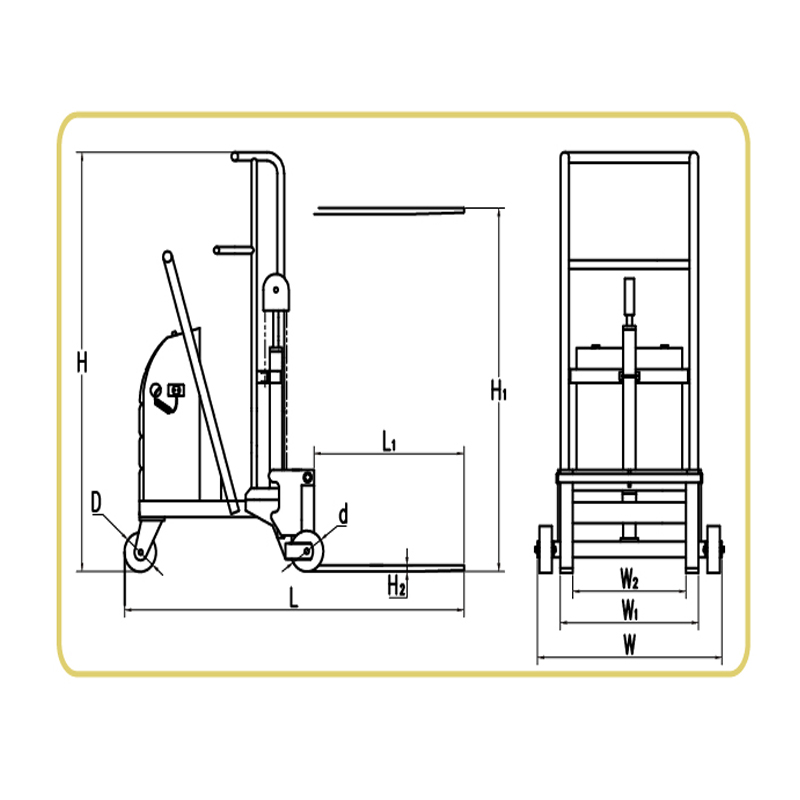

ModelEZ2515EZ2512
Capacitykg(lb.)250(550)
Fork Lengthmm(in.)600(23.6)
Max. Fork Heightmm(in.)1400(55.1)1100(43.3)
Min.Fork Heightmm(in.)Forged fork20(0.8)/Standard fork 50(2.0)
Adjustable Fork Width (outside)mm(in.)215-550(8.5-21.7)
Adjustable Fork Width (inside)mm(in.)15-350(0.6-13.8)
Dia of Front Wheelmm(in.)Φ125（5）
Dia of Steering Wheelmm(in.)Φ125（5）
Overall Size LxWxHmm(in.)1580x760x17401580x760x1440
62.2x29.9x68.562.2x29.9x56.7
Net Weightkg(lb.)230（506）225（495）

Equipment mover manufacturer:

As a professional manufacturer of various types of material handling & lifting products, equipment mover is one of our main products. In addition to this, we can also manufacture various kinds of pallet trucks, stackers, lift tables, forklifts, crane and so on. If you would like to purchase a type of material handling products, you can send us email from this page for quotation now. And if you are interested in our other products, welcome to contact us via e-mail or other ways that listed in the page. We will reply you in 24 hours.
