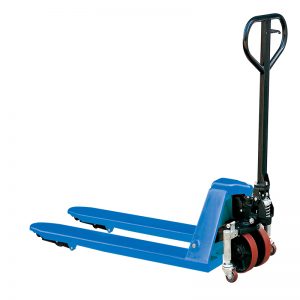

HPF series dual direction pallet truck has unique 4-direcional movement capacity provides the flexibility to maneuver wide loads through standard aisles.

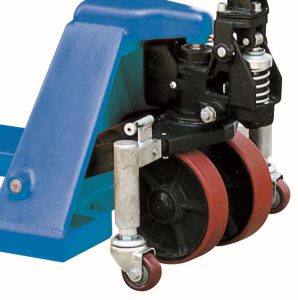

An additional set of wheels allows this manual pallet truck to be moved sideways in addition to conventional forward and backward directions.Move heavy loads, quickly and effortlessly, with convenient hydraulic power and industrial quality features. Include sealed ball bearings on wheels that are permanently lubed and polyurethane coated.

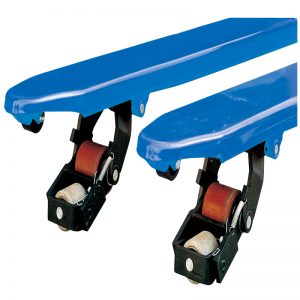

Rugged construction and excellent pricing make this pallet truck the best value for your material handling needs. Forks feature entry rollers and tapered design for easy pallet and skid entry, and are reinforced for heavy duty loads. This pallet jack has a 3-function hand control (raise, neutral and lower) and offers a spring-loaded self-righting safety loop handle to enhance comfort and ease of operation. Hardened chrome piston with protective dust cover ensures long, dependable service of this skid lift jack. Floor protective polyurethane steer and load wheels. Durable powder coat finish.
The dual direction pallet jack has model HPF12S, HPF12L.
| i-Lift No. | 1111103 | 1111104 | |
| Model | HPF12S | HPF12L | |
| Capacity | kg(lb.) | 2000/1200(4400/2640) | |
| Max.fork height | mm(in.) | 205(8.1) | |
| Min.fork height | mm(in.) | 85(3.3) | |
| Fork Length | mm(in.) | 1150(45.3) | 1220(48) |
| Width overall forks | mm(in.) | 540(21.3) | 680(27) |
| Rear wheel | mm(in.) | 200(8) | |
| Net Weight | kg(lb.) | 75(165) | 78(171.6) |
As a pallet truck manufacture(pallet jack manufacture), i-Lift also have electric pallet truck, high lift scissor pallet truck, rough terrian pallet truck, hand pallet truck(hydraulic pallet truck), low profile pallet truck, stainless pallet truck, galvanized pallet truck, roll pallet truck, pallet truck with scale, skid lifter pallet truck, weighing pallet truck and so on.
SAFETY RULES of Manual Pallet Truck(manual pallet jack)
For safe operation of the Hand Pallet Truck, please read all warning signs and instructions here and on the pallet truck prior to use.
- Safety rules
To avoid hazardous situations, you should obey the following rules:
- Fall Hazard
Do not use as a personnel lifting platform or step.
- Tip-over Hazards
Do not overload the machine.
The machine can be only used on a firm, level surface.
Do not use the machine on the condition of drop-offs, holes, bumps, debris, unstable surfaces or other possible hazardous conditions.
The machine can be only used in the light environment of at least 50LUX.
- Collision hazards
Do not lift if the load is not properly centered on the forks. Check the “Diagram of correct centered load” on the manual for correct load center position.
Check the work area for overhead obstruction or other possible hazards.
4) Bodily Injury Hazards
Recommended operators to wear safety shoes and gloves.
Do not put the hands and feet under the forks when using the machine.
5) Improper Use Hazard
Never leave a machine unattended with a load.
- Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection prior to each use.
Be sure that all decals are in place and legible.
- Lifting Hazard
Use proper lifting techniques to load the machine.
