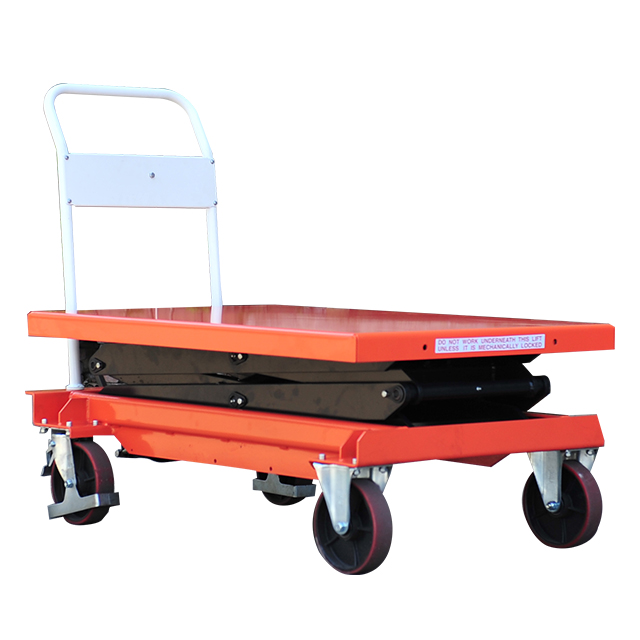

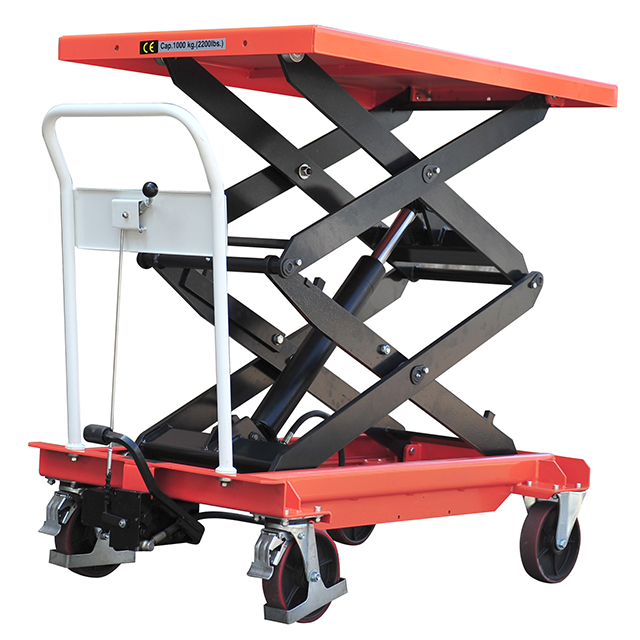

Heavy duty range.
New design to meet norm EN1570:1999.
New hydraulic system increases safety and protects your goods,tepless rate of lowering system remains irrespectibe of the weight of the load.
| i-lift No. | 1310410 | 1310411 | |
| Model | BS50LD | BS100LD | |
| Capacity | kg(Ib.) | 500(1100) | 1000(2200) |
| Min.Fork Height | mm(in.) | 470(18.5) | 520(20.5) |
| Max.Fork Height | mm(in.) | 2000(80) | |
| Table Size | mm(in.) | 1200*800(47.2*31.5) | |
| Handle Height | mm(in.) | 1030(40.5) | (42.5) |
| Ground Clearence | mm(in.) | 68.5(2.7) | 125(5) |
| Lowering time | sec | 22 | 44 |
| Net Weight | kg(Ib.) | 222(488.4) | 242(532.4) |

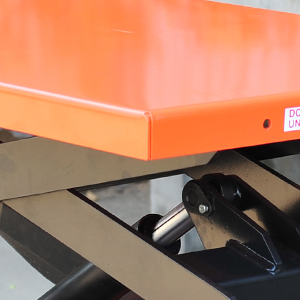

1.Exquisite workmanship
The countertops are all painted at high temperature and electrostatically sprayed. Smooth and clean surface, durable and corrosion-resistant

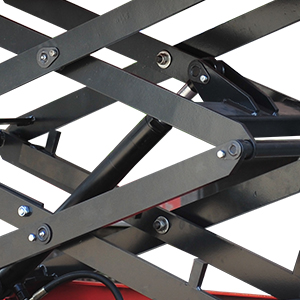

2.Thickened and stable scissors
Thickened scissors, durable and safe, strong load-bearing, stable performance

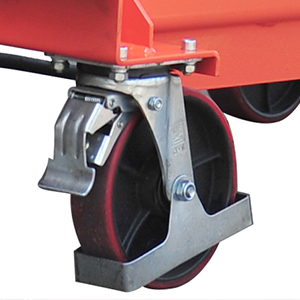

3.High-strength polyurethane wheels
The mute effect is stronger, the wheels are more wear-resistant, and the rear wheel has a brake

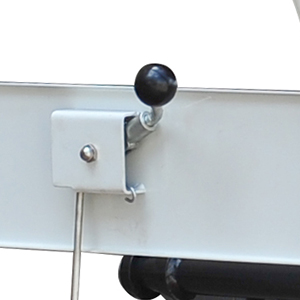

4.Descending handle, handle-type descending handle, precise control of descending speed
The rebound design can stop the descent at will
